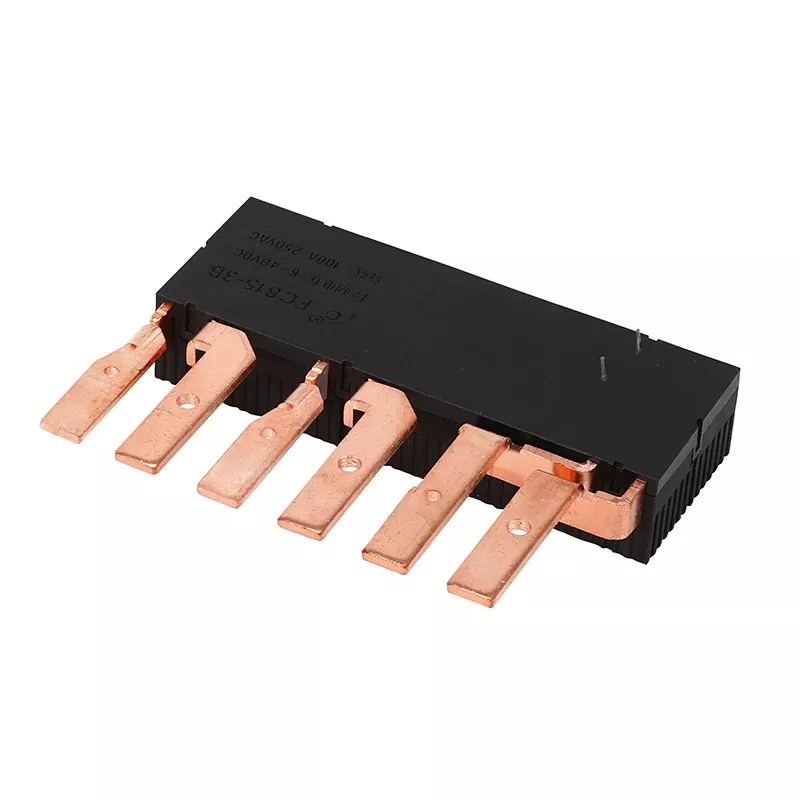

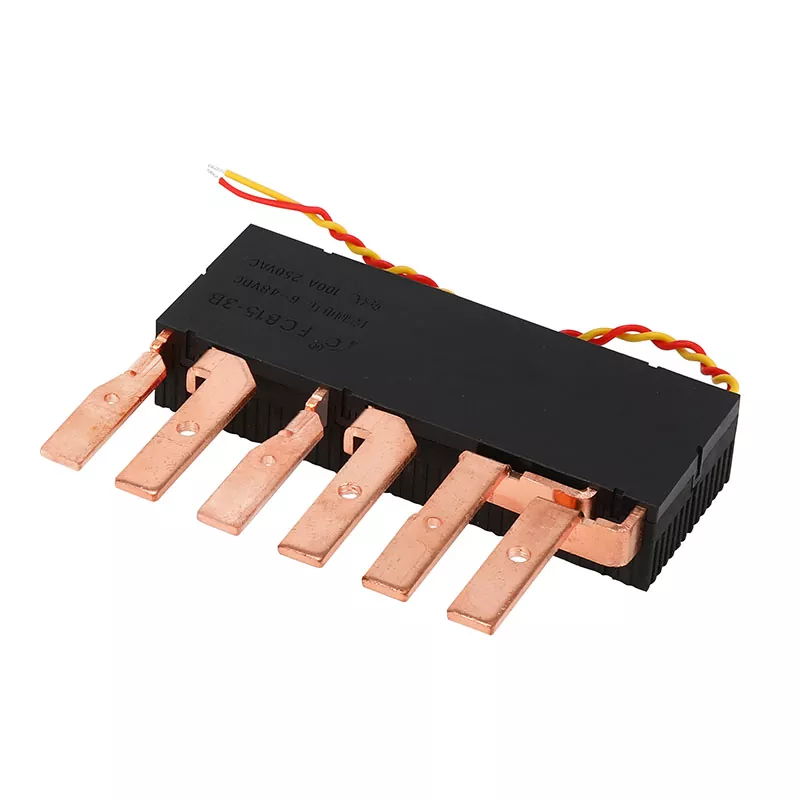

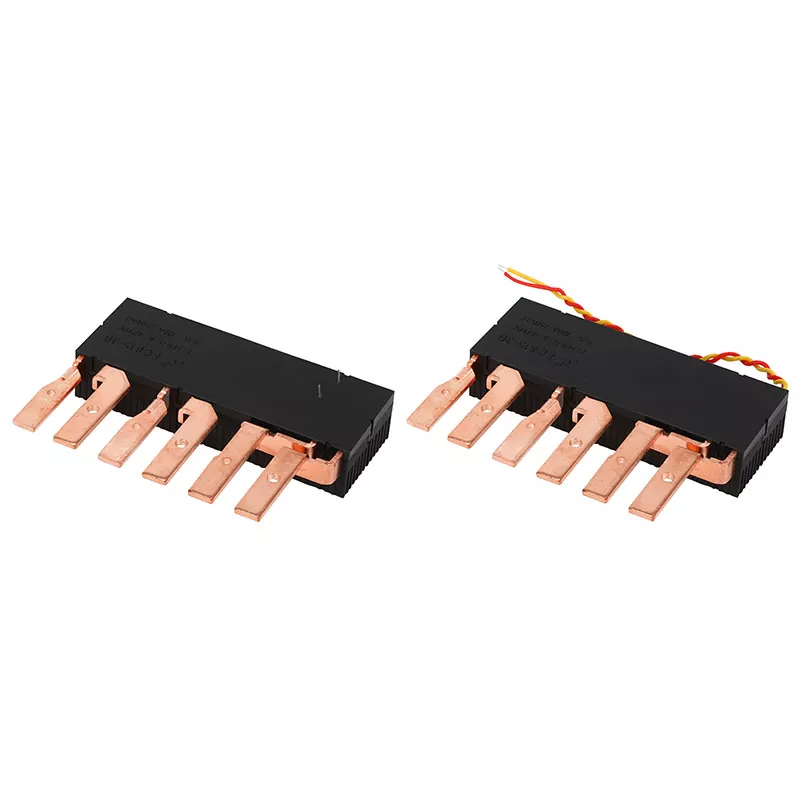

Latching Relay for Water Pump Control Switch

The latching relay for water pump control switch is a high-performance electrical component specially designed to control the start and stop of large water pumps. With a rated current of 80A-120A and a driving voltage of 6-48V, it has a wide range of applications and is an ideal choice for agricultural irrigation, industrial water treatment and building water supply and drainage systems.

Rated Current: 80A-120A

Drive Voltage Range: 6-48V DC

Operating Temperature: 40°C to 85°C

Material: High-quality insulating plastic and silver alloy

Dimensions: Customized according to specifications (detailed dimension drawings are available)

This latching relay is designed as a core component of the water pump control system, which can gradually control the switching state of the water pump. Latching Relay for Water Pump Control Switch is widely used in scenarios where frequent current consumption is required, especially it can maintain the last working state in the power-off state, avoiding frequent power-on and power-off. Waste.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
 COIL  RESISTANCE
      (Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
牛  9 28.9  14.5/14.5 2.80  5.60  ≤6.3 ≤6.3 48
12  51.4  25.7/25.7 ≤8.4 ≤8.4 60
24  205.7  102/102 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 3B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 100A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 100A
(MAX.SWITCHING POWER) 25000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 30ms Max
(RELEASE TIME) 30ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 140g

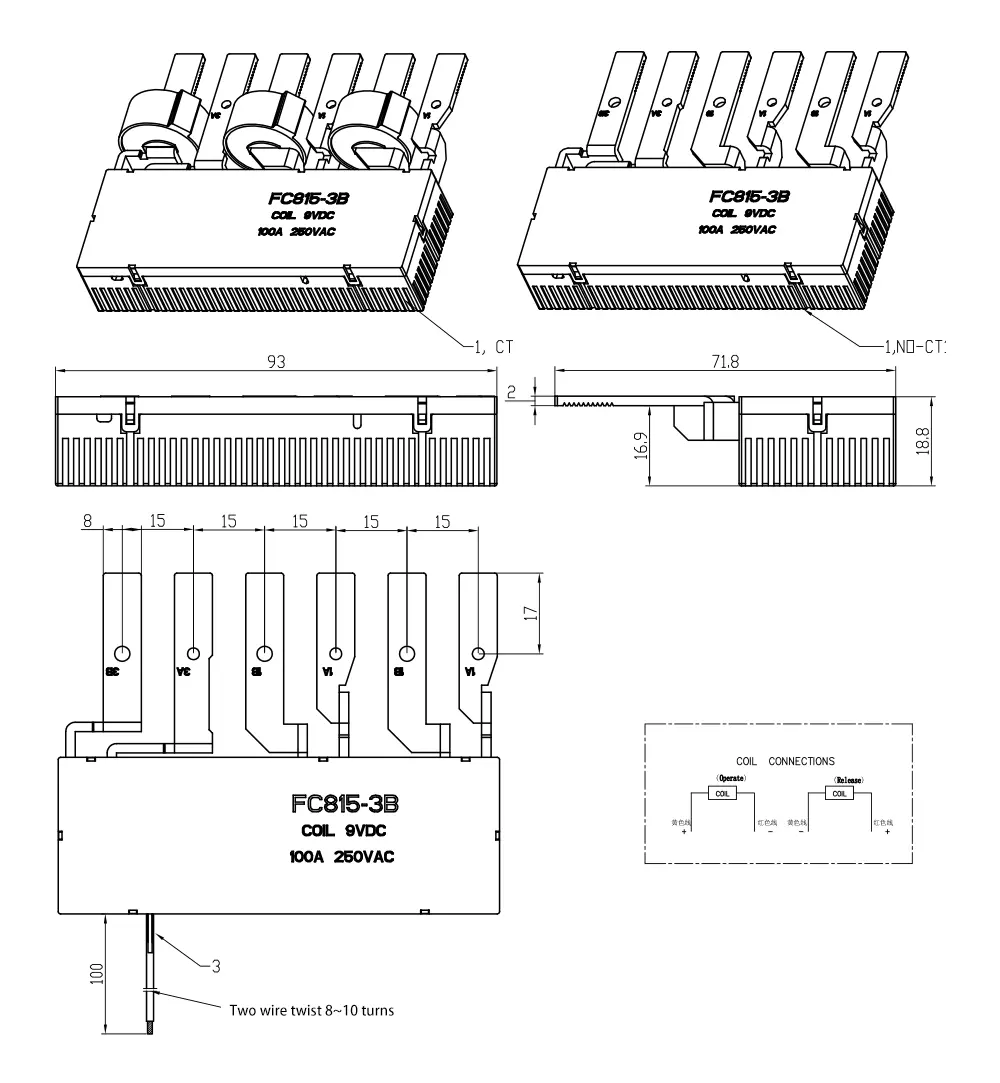

(OVERALL DIMENSION) (in drawing)
