Electronic Smart Meter 90A Latching Relay
  • Electronic Smart Meter 90A Latching RelayElectronic Smart Meter 90A Latching Relay
  • Electronic Smart Meter 90A Latching RelayElectronic Smart Meter 90A Latching Relay

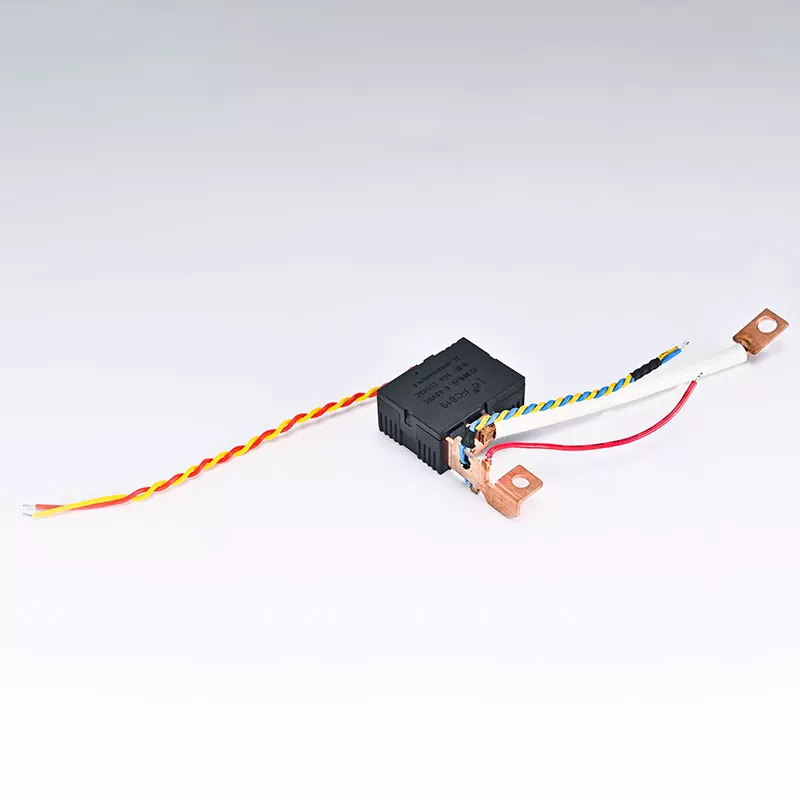

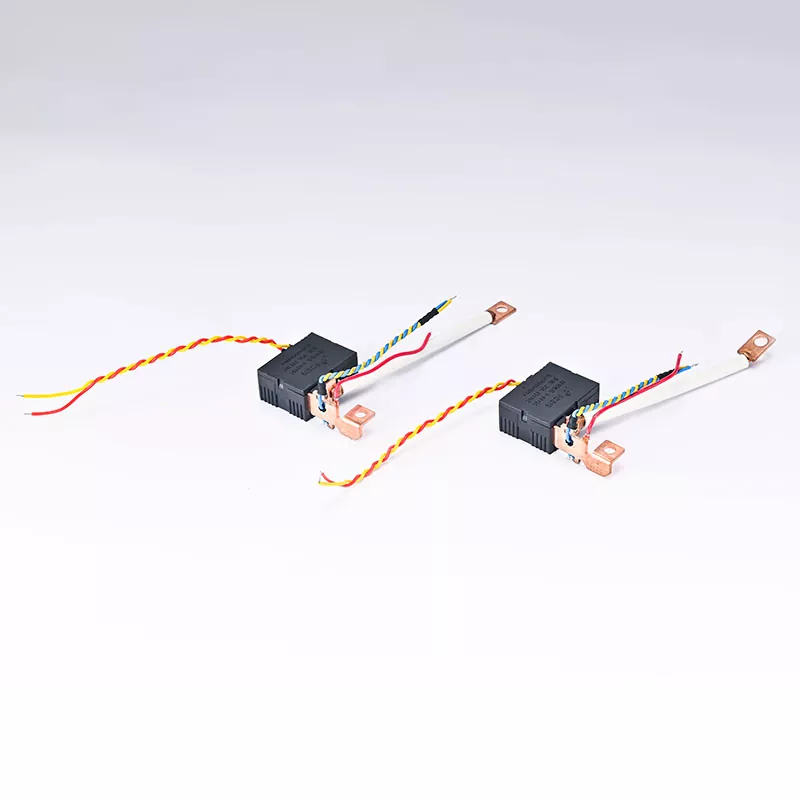

Electronic Smart Meter 90A Latching Relay

Since the latching relay market is constantly developing and changing, we recommend that you bookmark our website, where we will regularly show you the latest news. The Electronic Smart Meter 90A Latching Relay is a high-efficiency product designed for smart meters to provide reliable current monitoring and control functions. The relay is widely used in power metering and management systems with its excellent performance and stability.

Model: 90A magnetic latching relay

Rated current: 90A

Sampling resistance: 300Ω

Applicable ambient temperature: -40°C to +85°C

Weight: Lightweight design, easy to install and transport.

The Electronic Smart Meter 90A Latching Relay has become an important part of the modern smart meter system due to its high rated current, low power consumption and high precision. Whether in power monitoring or in daily power management, this product can provide excellent performance and reliability, and help the development of smart power systems.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 90A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 90A
(MAX.SWITCHING POWER) 22500VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MΩ Min.
(WEIGHT) 38g

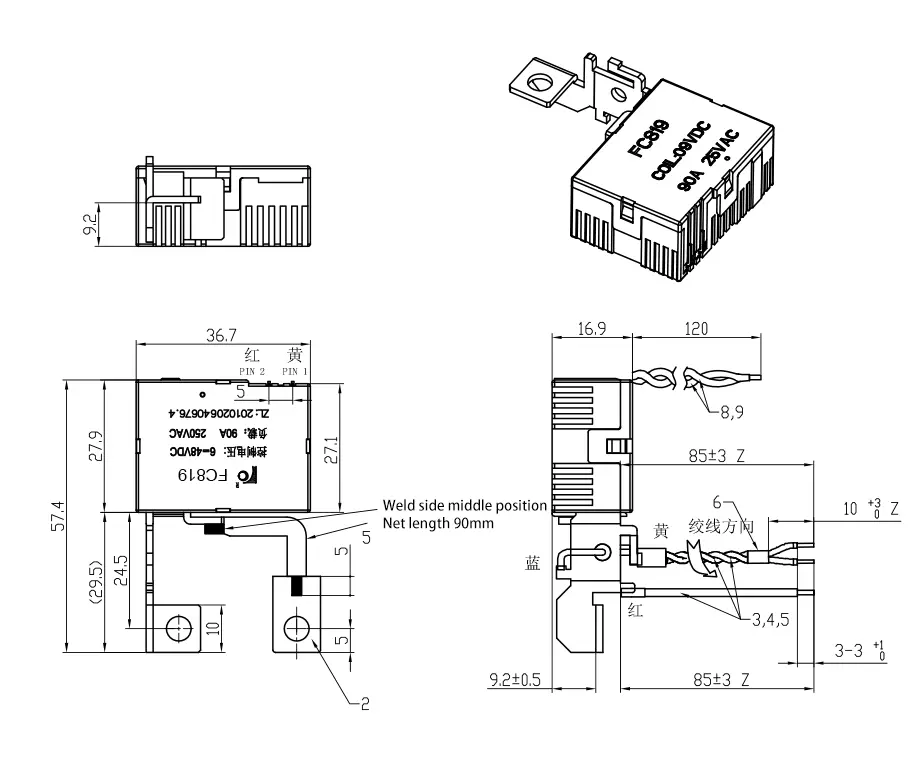

(OVERALL DIMENSION) (in drawing)
