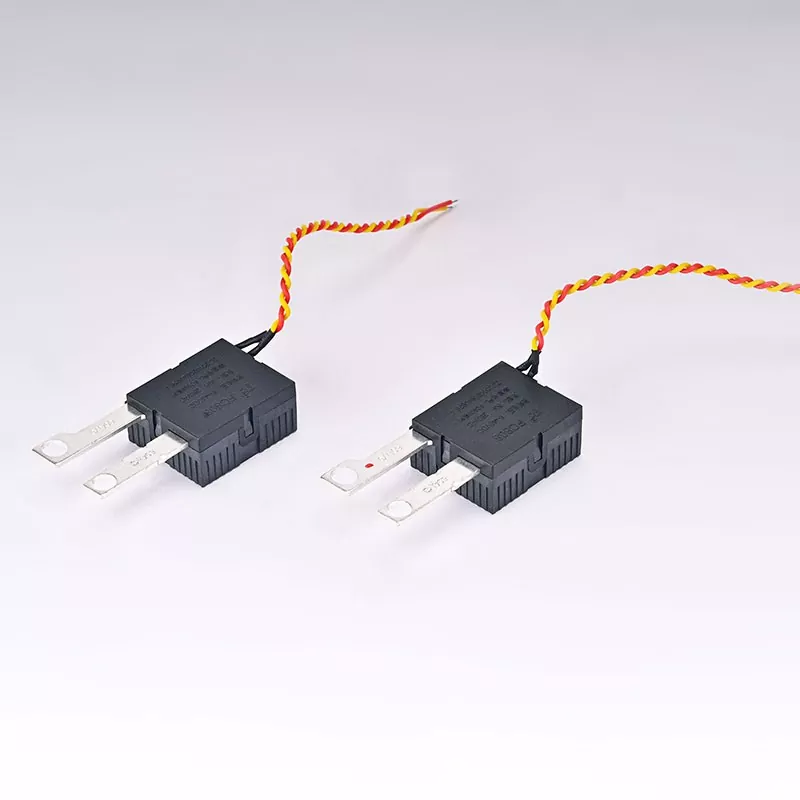

80A Three-Phase Wall-Mounted Latching Relay

The latching relays are key components of three-phase power systems and are designed for monitoring and controlling electrical current. The magnetic holding technology used makes the relay consume almost no additional power when maintaining the closed state, which not only extends the service life, but also provides an efficient operation solution for intelligent power systems. In addition, this 80A Three-Phase Wall-Mounted Latching Relay has a flexible driving voltage range (6VDC-48VDC), and its electrical life can reach more than 15,000 times, ensuring long-term stable operation. Its magnetic retention technology not only reduces energy consumption, but also improves system reliability, making it suitable for a variety of industrial and commercial applications.

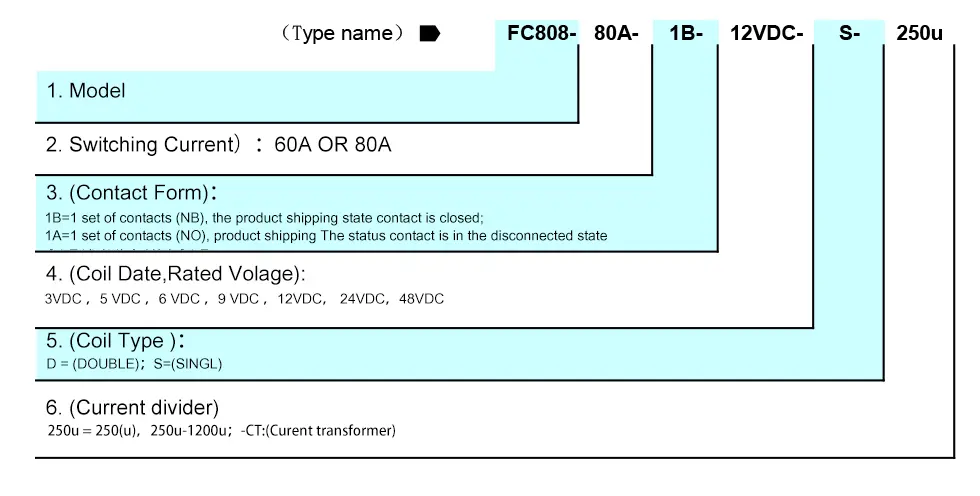

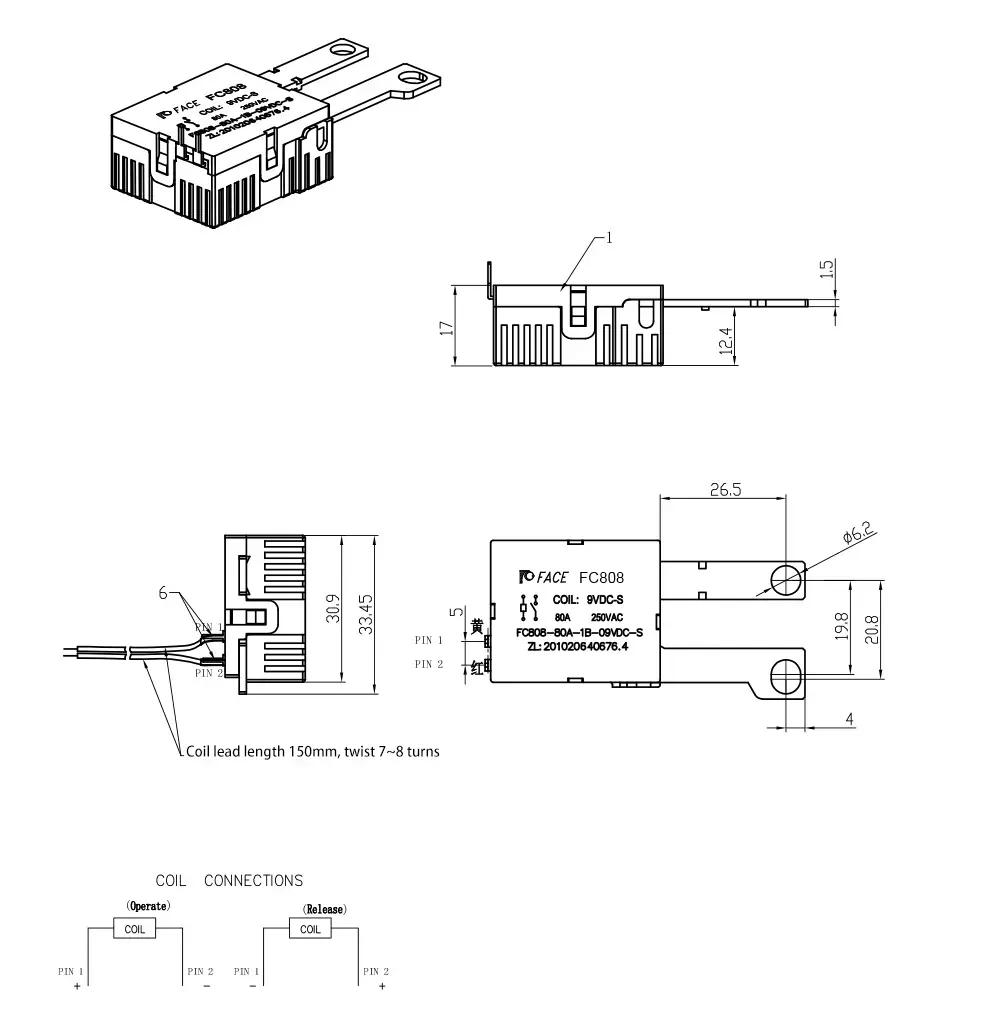

（COIL SPECIFICATION）20℃

Features

Wide driving voltage range: Supports a variety of driving voltage options from 6VDC to 48VDC to adapt to different power needs.

Long electrical life: The electrical life exceeds 15,000 times, ensuring long-term reliability of the equipment and reducing maintenance costs.

Magnetic retention design: It consumes almost no power in the maintenance state, significantly improving the energy efficiency of the system.

Fast response time: Ensure that it can respond to current changes in a short time, suitable for real-time data monitoring needs.

Easy to install: Compact design, suitable for installation in various power monitoring systems.

Application areas

Power monitoring system: used for three-phase power meters, wall meters and other monitoring equipment to monitor current and voltage in real time.

Industrial automation: In industrial equipment, it provides current control and fault detection to enhance equipment safety.

Green energy: suitable for monitoring and managing current output in solar and wind power generation systems.

Smart buildings: In smart building management systems, the operation of electrical equipment is controlled to improve energy efficiency.

1. Ensure safety: Before installation, please make sure the power supply is disconnected to ensure safety.

2. Fixing location: Choose a suitable wall location and fix the relay in a dry and ventilated place.

3. Wiring steps: Connect the relevant cables according to the wiring instructions provided by the product.

4. Functional test: After the installation is completed, turn on the power and conduct various functional tests to ensure that the relay is working properly.

Instructions for use

1. The factory state of the magnetic latching relay is the contact closed state (reset state), but the state may change due to factors such as impact during transportation or installation of the relay. Therefore, it is necessary to take measures to reset it before use.

2. In order to ensure reliable operation of the magnetic latching relay, the excitation voltage applied to the coil must reach the rated value, and the pulse width must reach more than 3 times the action time.

3. Make sure to use it within the rated current and voltage range to avoid exceeding its load capacity. Regularly check the contact points and wiring to ensure good connections and stable working conditions.

4. During use, do not drop, throw, throw or drop the product from high altitude. This will affect the performance of the product. If any abnormality is found, please cut off the power immediately for inspection to ensure the safety of the equipment.

Packing specifications: 400 pieces per box

Warranty period: 1 year (excluding man-made damage)

Price: Please contact the sales department for the latest quotation and ordering information.
