Type: Single-phase latching relay
Rated current: 80A
Drive voltage: 6VDC-48VDC
Operating temperature range: -20°C to 70°C
Connection method: screw connection/terminal connection
Dimensions: Standard model: 35.7mm x32.45mm x 16.9mm
Weight: about 0.04kg

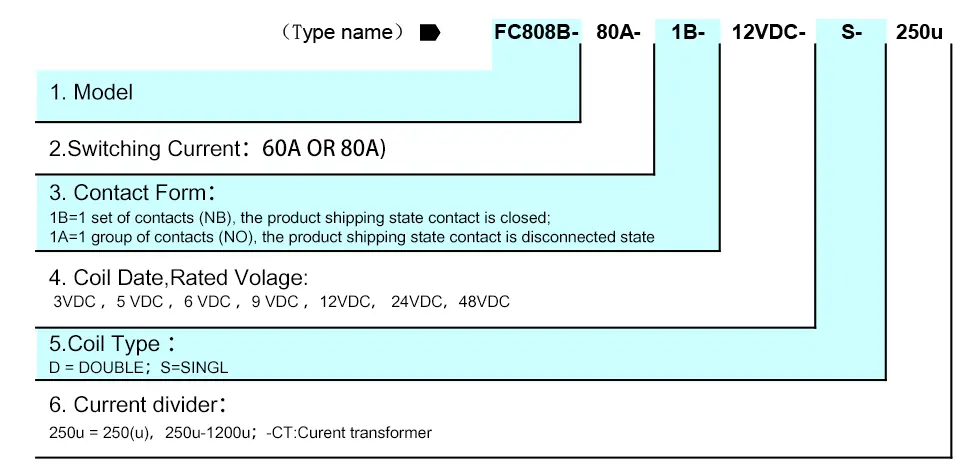

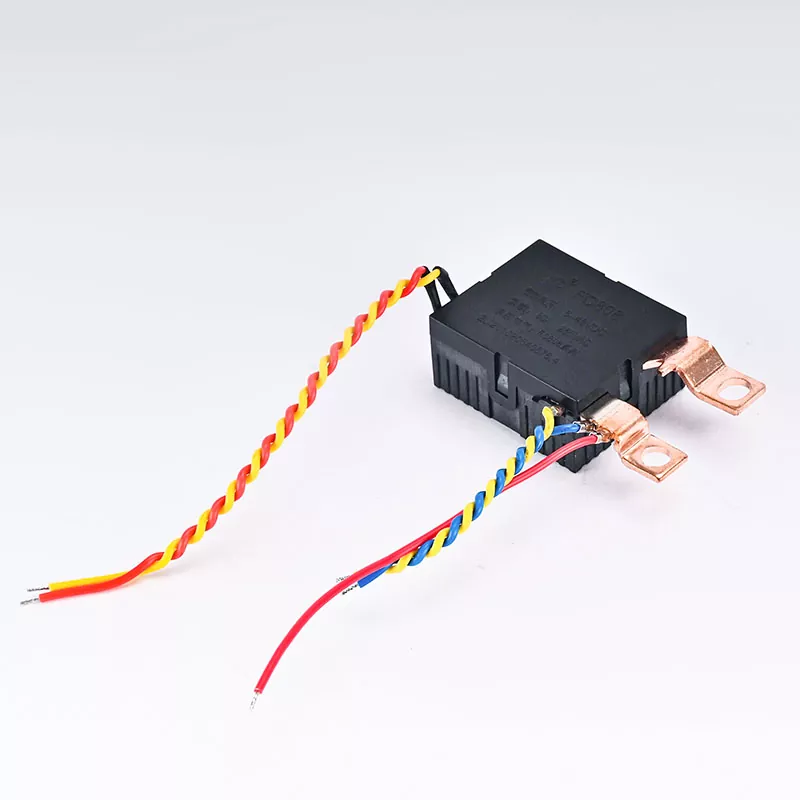

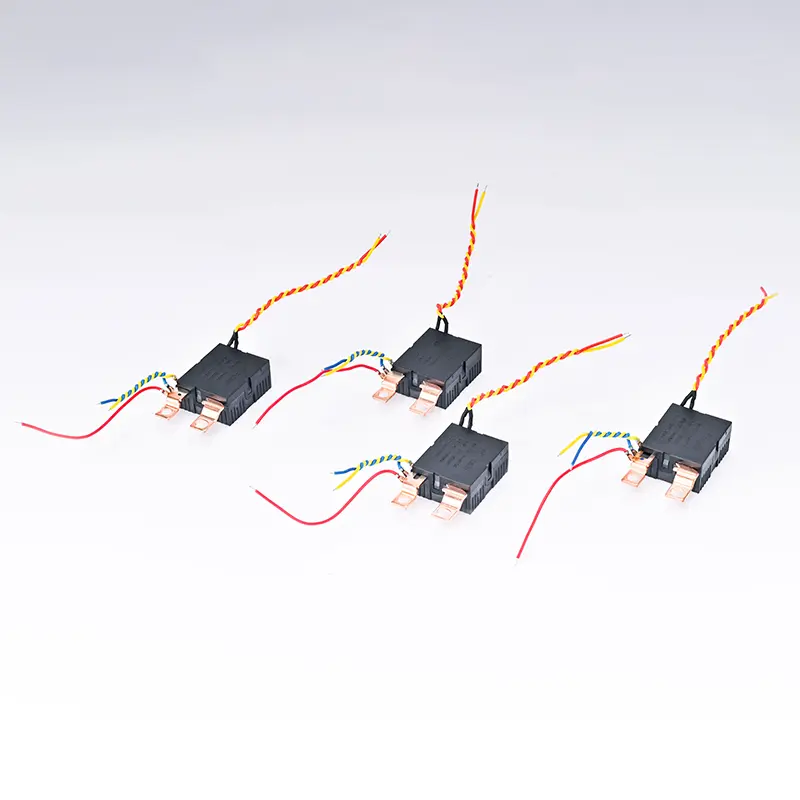

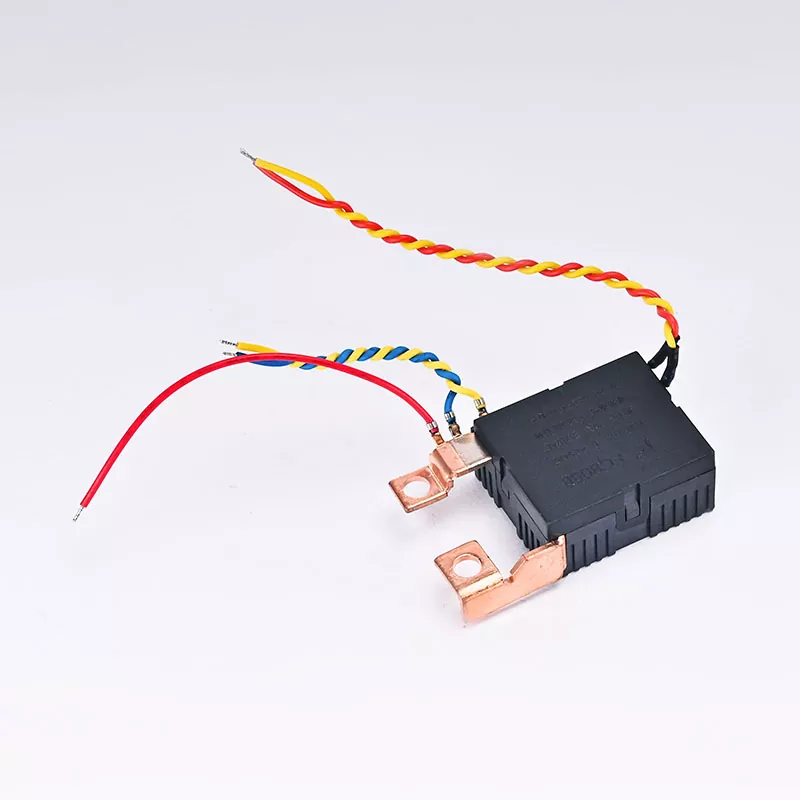

The unique magnetic latching design of the 80A Single-phase Latching Relay ensures stable and reliable switch control while reducing energy consumption. Welcome to our factory to buy the latest sales, low price and high quality latching relays.
|
VOLTAGE (VDC) |
COIL RESISTANCE (Q)±10% |
COIL Power(W) |
OPERATING VOLTAGE(VDC) |
RELEASING VOLTAGE (VDC) |
ALLOWING VOLTAGE (VDC) |
||
| Single | DOUBLE | Single | DOUBLE | ||||
| 9 | 81.0 | 40.5/40.5 | 1.00 | 2.00 | ≤6.3 | ≤6.3 | 48 |
| 12 | 144.0 | 72/72 | ≤8.4 | ≤8.4 | 60 | ||
| 24 | 576.0 | 288/288 | ≤16.8 | ≤16.8 | 120 | ||
| (CONTACT FORM) | 1B | |
| (CONTACT MATERIAL) | (SILVER ALLOY) | |
| (CONTACT VOLTAGE DROP 10A) | Max.15mV | |
| (CONTACT RATING) | 80A 250VAC | |
| (MAX.SWITCHING VOLTAGE) | 250VAC | |
| (MAX.SWITCHING CURRENT) | 80A | |
| (MAX.SWITCHING POWER) | 20000VA | |
| (SERVICE LIFE) | (MECHANICAL) | 5×10⁵OPS |
| (ELECTRICAL) | 1×10⁴OPS | |
| (0PERATE TIME) | 20ms Max |
| (RELEASE TIME) | 20ms Max |
| (DIELECTRIC STRENGTH)(50/60HZ,1Min) | |
| (CONTACT &COIL) | 6000VAC |
| (CONTACT & CONTACT) | 1500VAC |
| (POLE&POLE) | |
| (INSULATION RESISTANCE,500VDC) | 1000MΩ Min. |
| (WEIGHT) | 38g |
| (0VERALL DIMENSION) | (in drawing) |
