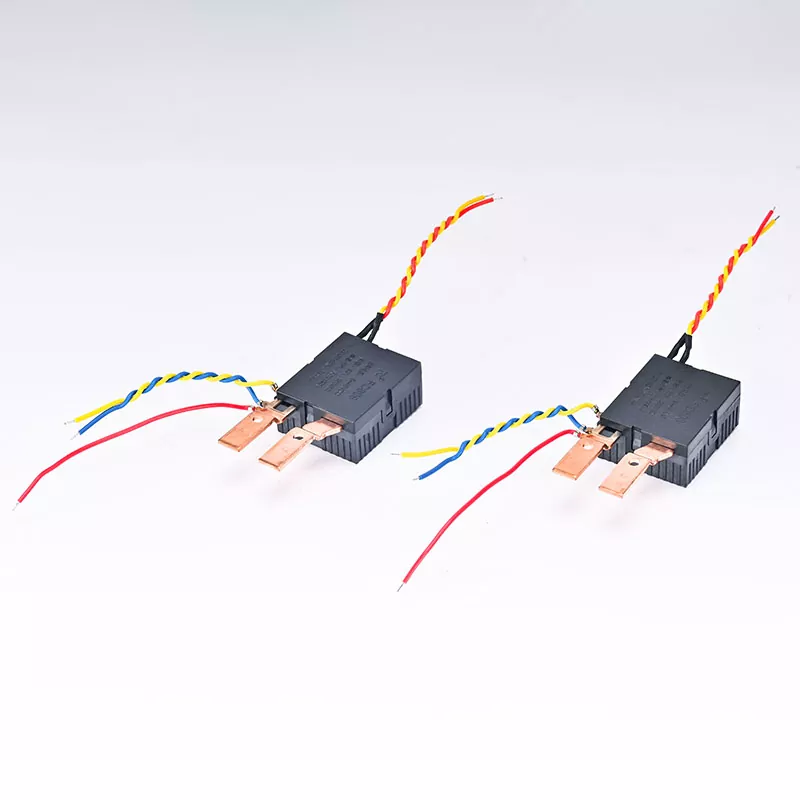

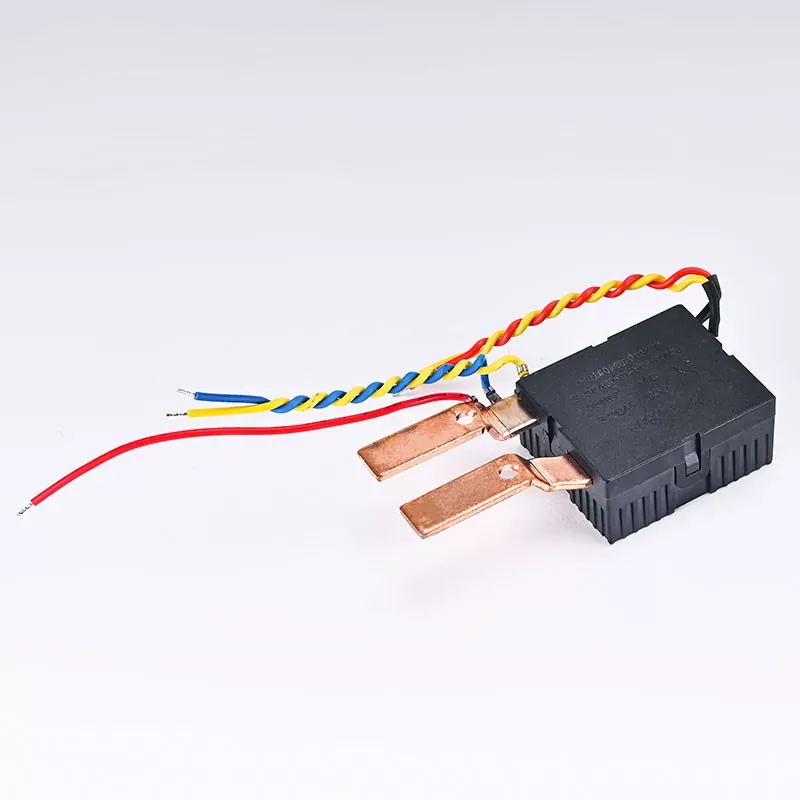

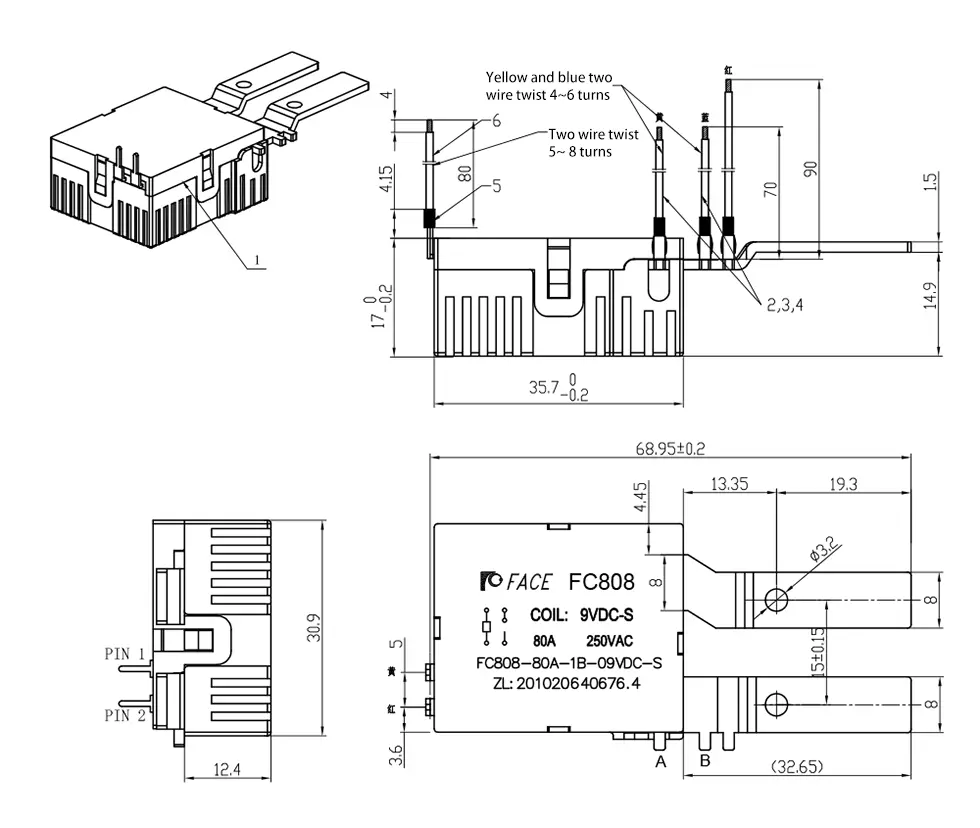

80A Single-Phase 4P Rail Type Latching Relay

The 80A Single-Phase 4P Rail Type Latching Relay of this product is an efficient control device focusing on intelligent power systems and is suitable for high flow and high load environments. Its 250 microohm sampling resistance significantly reduces power loss under normal operating conditions, making the device more efficient. The relay's rail-mounted design makes system integration so convenient, and users can quickly install and replace it in electrical distribution cabinets or automation control panels. With its considerable operating temperature range and rugged construction, the relay can withstand a variety of harsh environments and ensure long-term reliable operation.

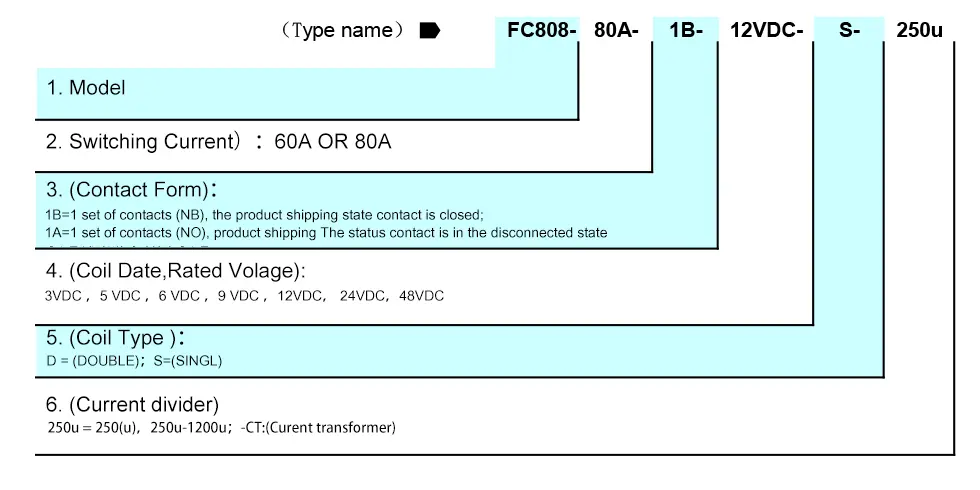

（COIL SPECIFICATION）20℃

Features

High current capability: Can carry current up to 80A to meet the needs of different power equipment.

Low sampling resistance: The sampling resistance of 250 microohms (μΩ) effectively reduces current loss and improves energy utilization efficiency.

4P contact form: Provides four contacts to support more complex control logic and device connections to meet a variety of application needs.

Guide rail installation design: Guide rail installation that complies with DIN standards facilitates rapid integration and maintenance and improves system flexibility.

Magnetic retention technology: The current consumption is extremely low in the maintenance state, helping to reduce overall energy consumption and extend the life of the equipment.

Application areas

Intelligent power system: As the key controller of intelligent power network and distribution system, it ensures the efficiency of power dispatching.

Industrial automation: Effectively control the start, stop and adjustment of various industrial equipment to achieve efficient equipment management.

Renewable energy systems: Used for power conversion and control in solar or wind power generation systems to improve system reliability and safety.

Building electrical system: used in smart home and building automation systems to achieve intelligent control of lighting, air conditioning and other equipment.

1. Ensure safety: Before installation, please make sure the power supply is disconnected to ensure safety.

2. Fixing location: Choose a suitable wall location and fix the relay in a dry and ventilated place.

3. Wiring steps: Connect the relevant cables according to the wiring instructions provided by the product.

4. Functional test: After the installation is completed, turn on the power and conduct various functional tests to ensure that the relay is working properly.

Instructions for use

1. The factory state of the magnetic latching relay is the contact closed state (reset state), but the state may change due to factors such as impact during transportation or installation of the relay. Therefore, it is necessary to take measures to reset it before use.

2. In order to ensure reliable operation of the magnetic latching relay, the excitation voltage applied to the coil must reach the rated value, and the pulse width must reach more than 3 times the action time.

3. Make sure to use it within the rated current and voltage range to avoid exceeding its load capacity. Regularly check the contact points and wiring to ensure good connections and stable working conditions.

4. During use, do not drop, throw, throw or drop the product from high altitude. This will affect the performance of the product. If any abnormality is found, please cut off the power immediately for inspection to ensure the safety of the equipment.

Packing specifications: 400 pieces per box

Warranty period: 1 year (excluding man-made damage)
