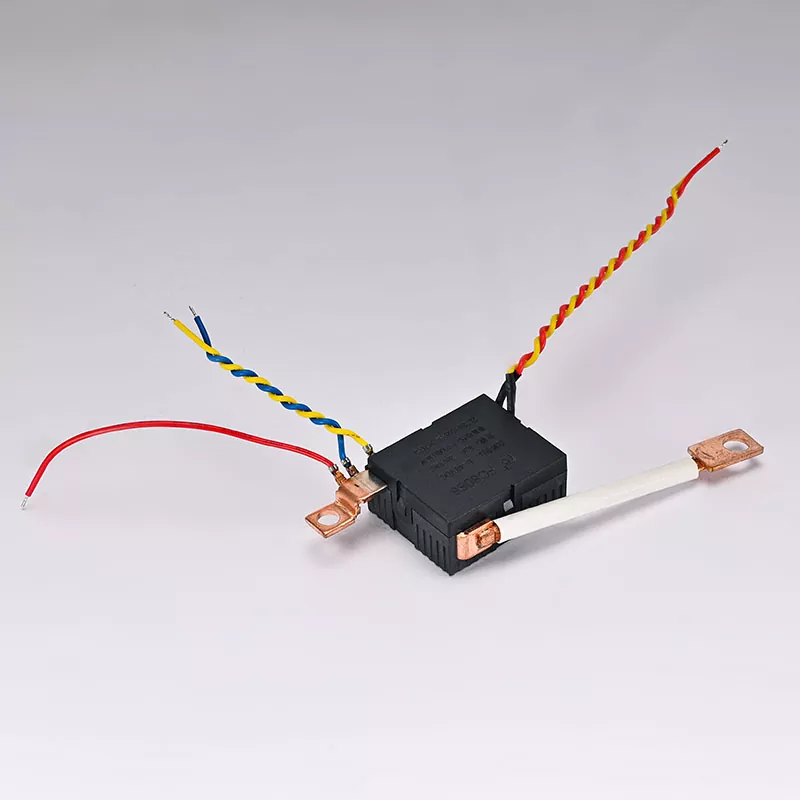

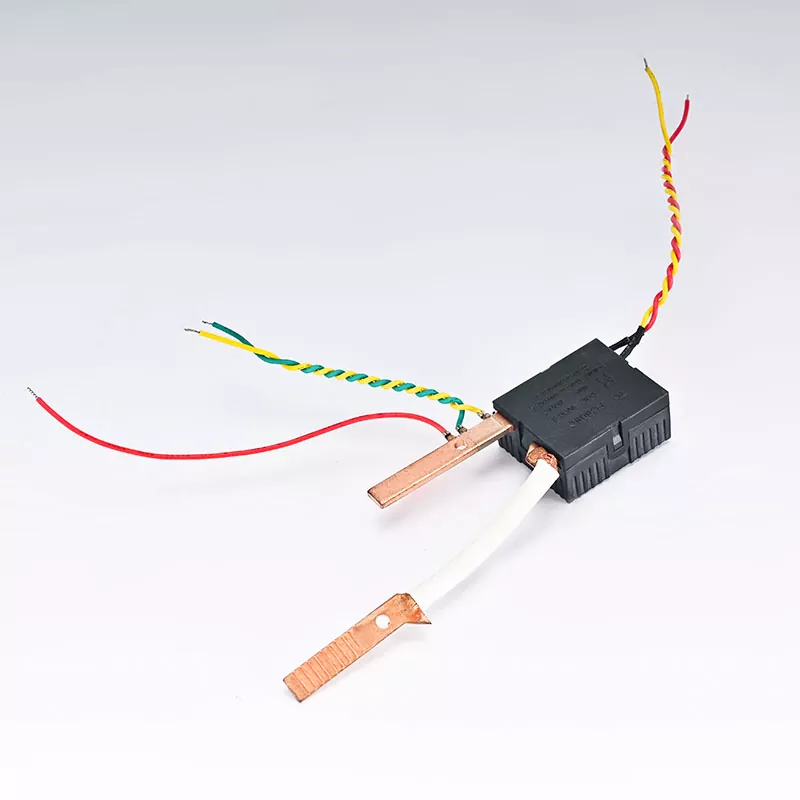

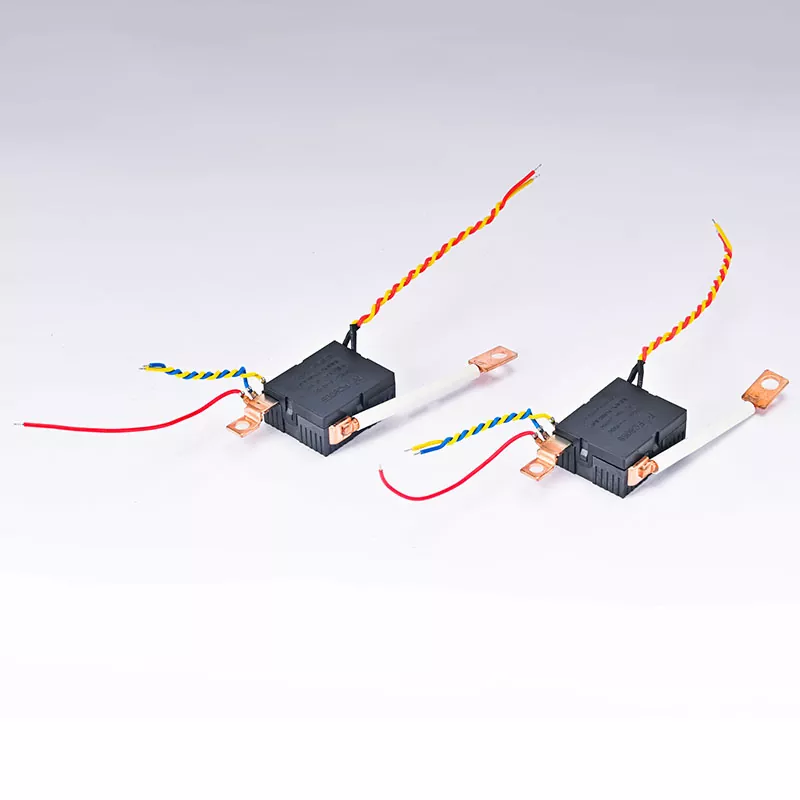

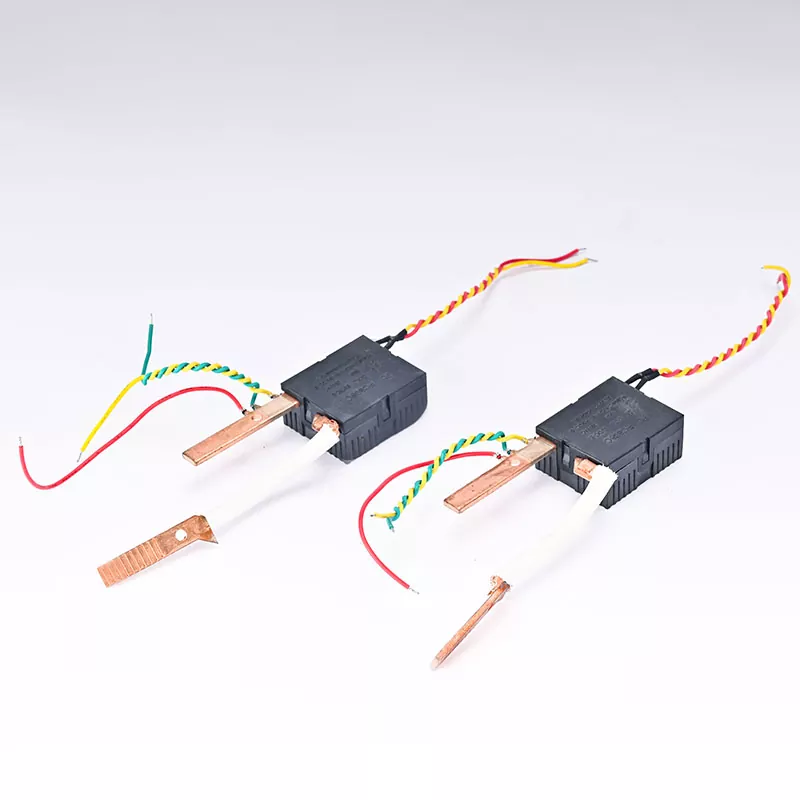

Single-Phase Keyboard Meter Latching Relay

The Single-Phase Keyboard Meter Latching Relay is designed for single-phase power metering systems. It is available in 100A and 80A versions with a flexible sampling resistance range (125Ω to 250Ω). The relay has efficient and reliable performance and is widely used in smart meters and power management systems.

Model: Single-phase keyboard meter magnetic latching relay

Rated current: 100A / 80A (optional)

Sampling resistance range: 125Ω to 250Ω (optional)

Operating temperature range: -40°C to +85°C

Weight: Lightweight design, easy to transport and install.

The single-phase keyboard meter latching relay has become an ideal power monitoring solution with its efficient performance and flexible configuration options. Whether it is home application or industrial demand, this product can provide accurate and reliable services and improve the intelligent level of power management.

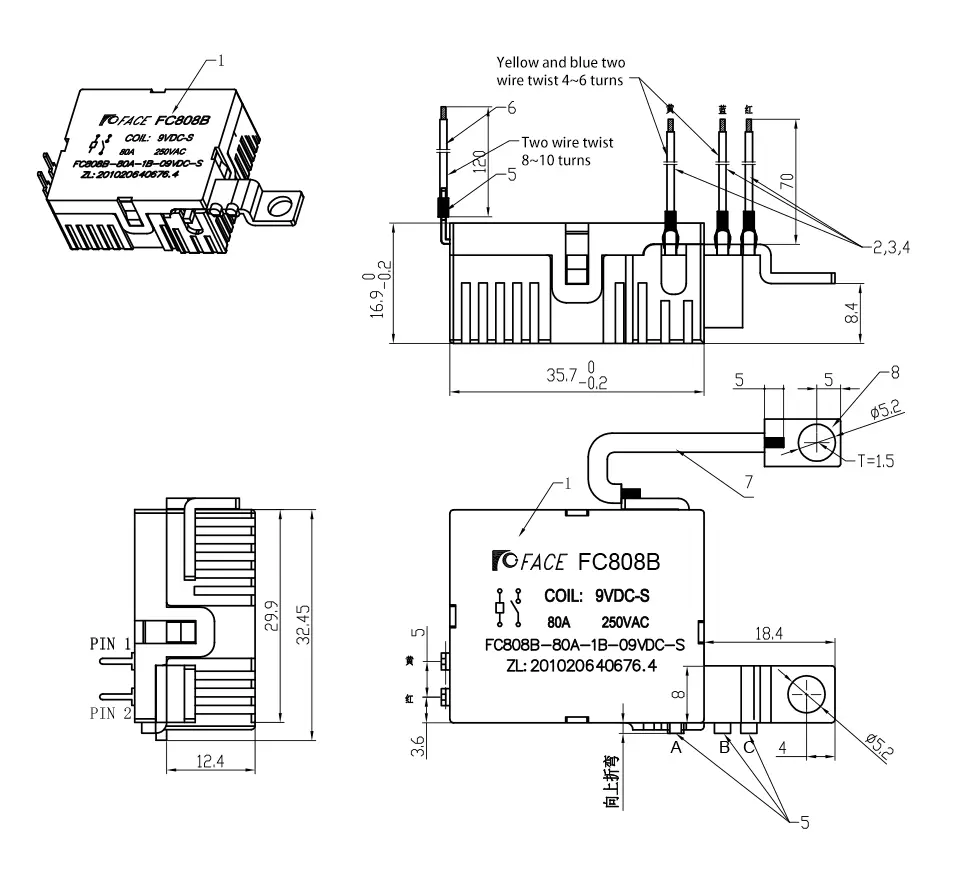

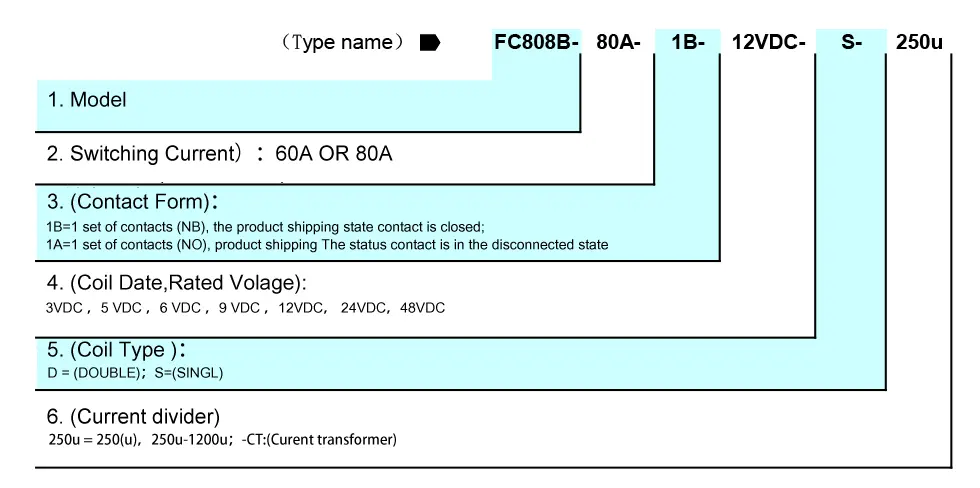

FC808B-1B-9VDC-80A

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 80A  250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 80A
(MAX.SWITCHING POWER) 20000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms  Max
(DIELECTRIC STRENGTH)  (50/60HZ,1Min)
(CONTACT & COIL) 6000VAC
(CONTACT & CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 38g
(OVERALL DIMENSION) (in drawing)

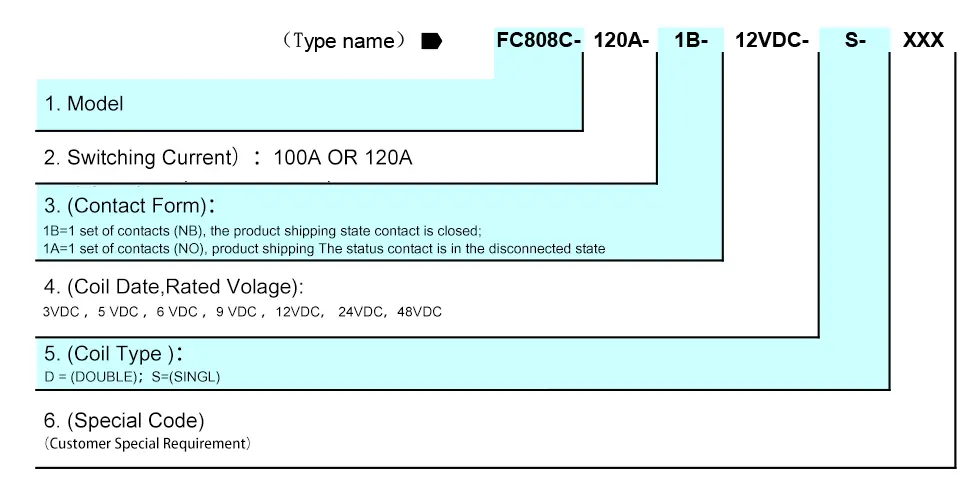

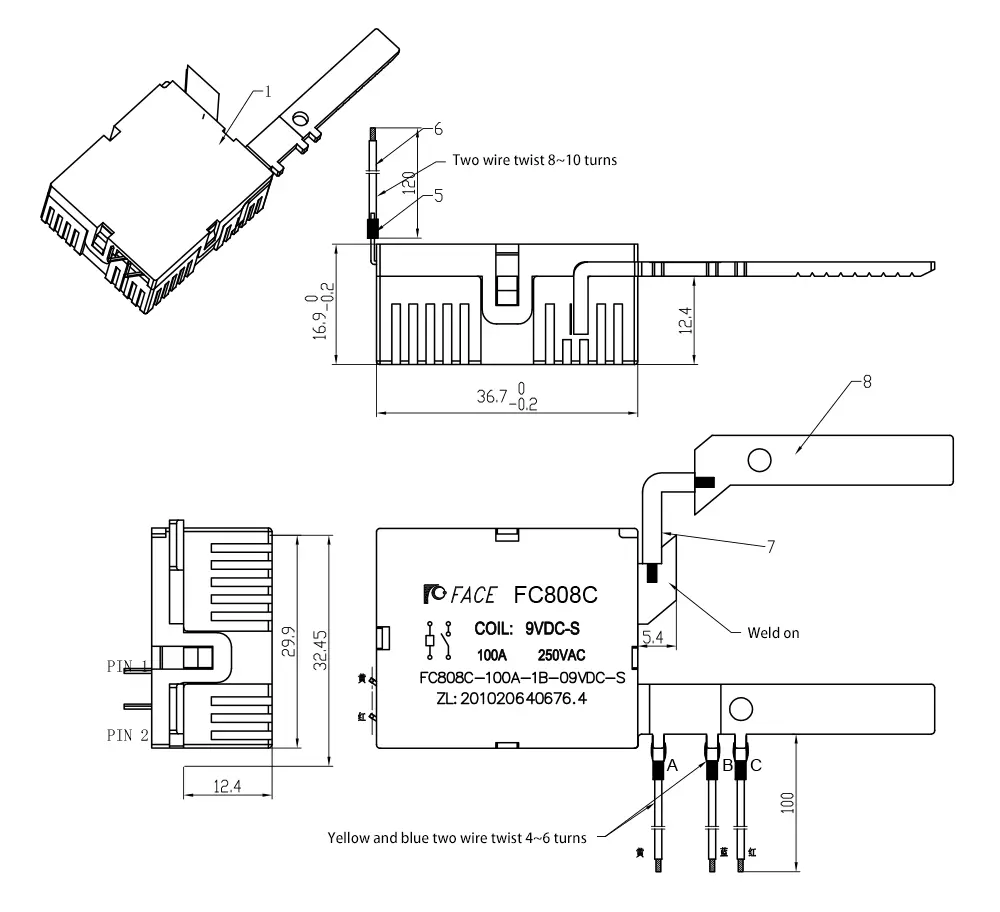

FC808C-1B-9VDC-S-100A

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
 COIL  RESISTANCE
      (Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
(VDC) ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 100A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 100A
(MAX.SWITCHING POWER) 25000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 40g
(OVERALL DIMENSION) (in drawing)
