Single-Phase 2P Rail Type Top-in-Bottom-Out Latching Relay

As a professional high-quality latching relay manufacturer, you can buy Single-Phase 2P Rail Type Top-in-Bottom-Out Latching Relay from our factory with confidence. This relay is specially designed for high-load control of industrial and household appliances, supports flexible wiring, and provides wire welding style and welding pin plug-in style to meet the needs of different users. This magnetic latching relay is compatible with a variety of power systems and is an important choice for improving electrical control efficiency and safety.

Type:Single-phase 2P guide rail type top in and bottom out magnetic latching relay

Rated current:90A

Sampling resistance:350 microohms (μΩ)

Drive voltage:6VDC-48VDC

Operating temperature range:-40°C to 85°C

Size:Complies with standard 35mm guide rail specifications

Weight:about 0.05kg

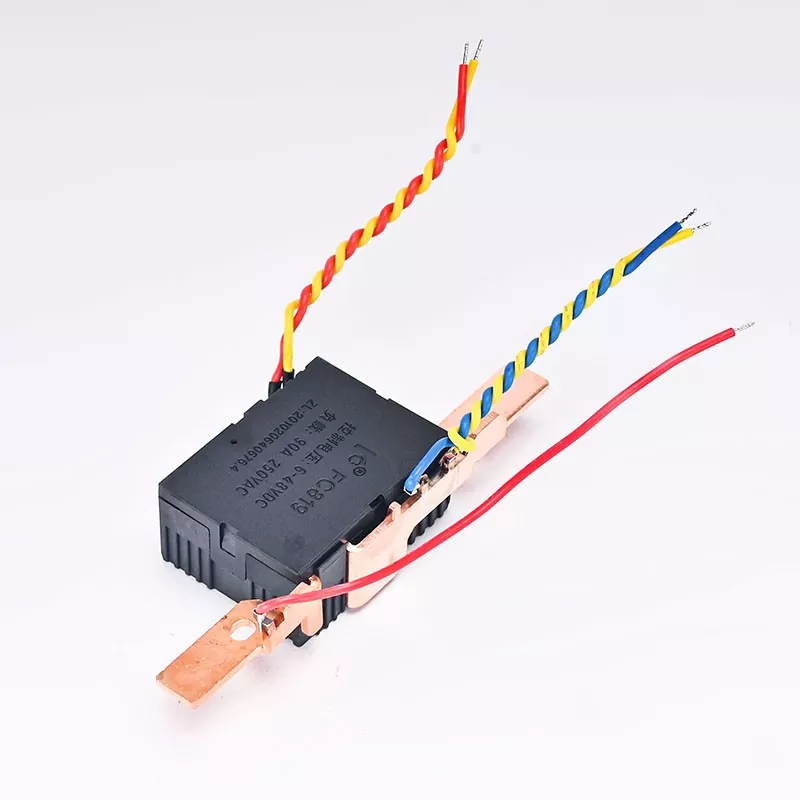

Welding options:wire welding, soldering pin plug-in style

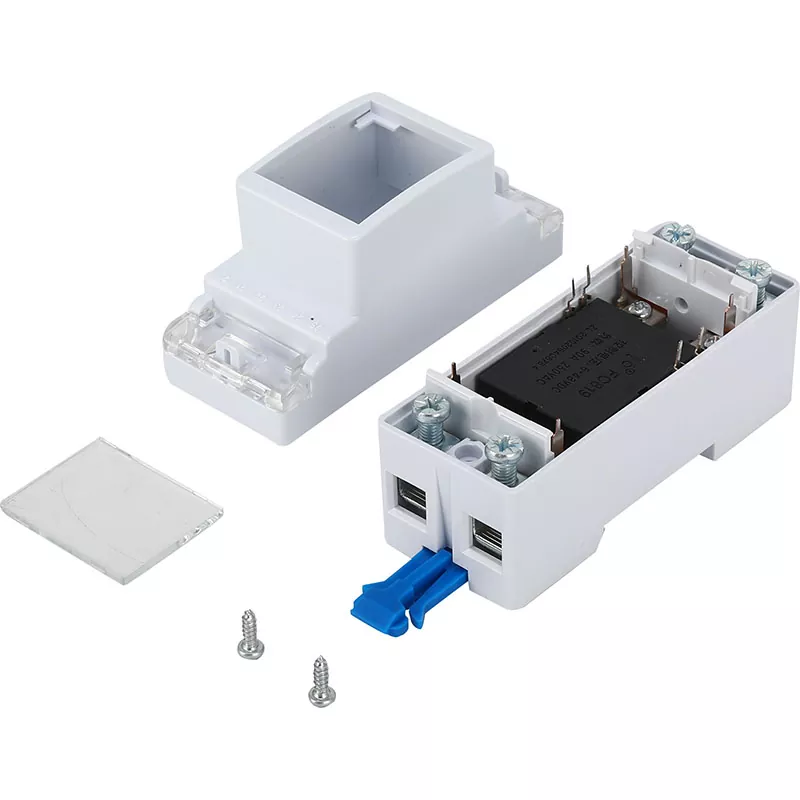

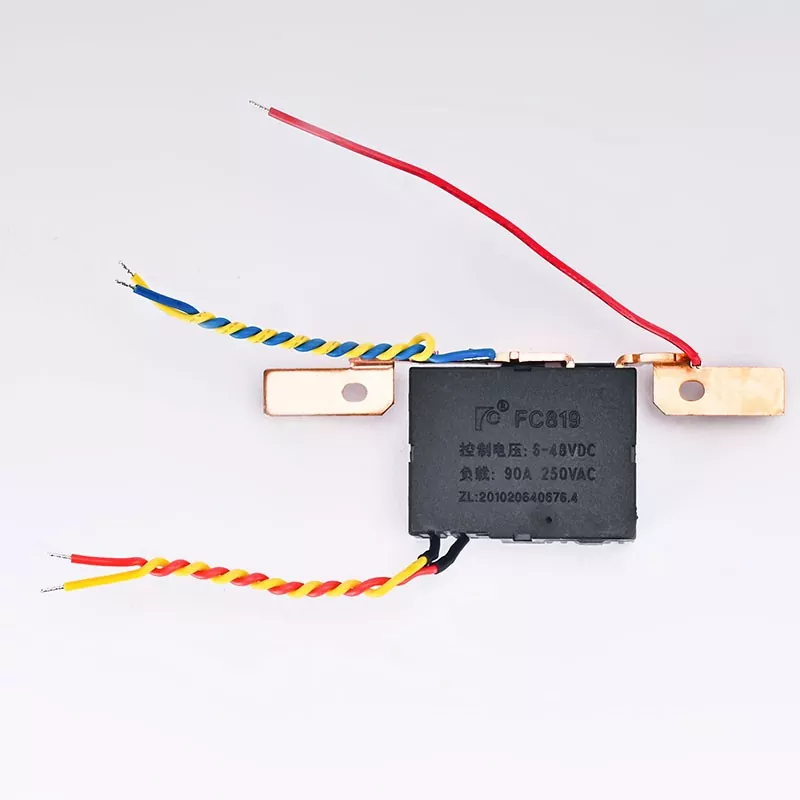

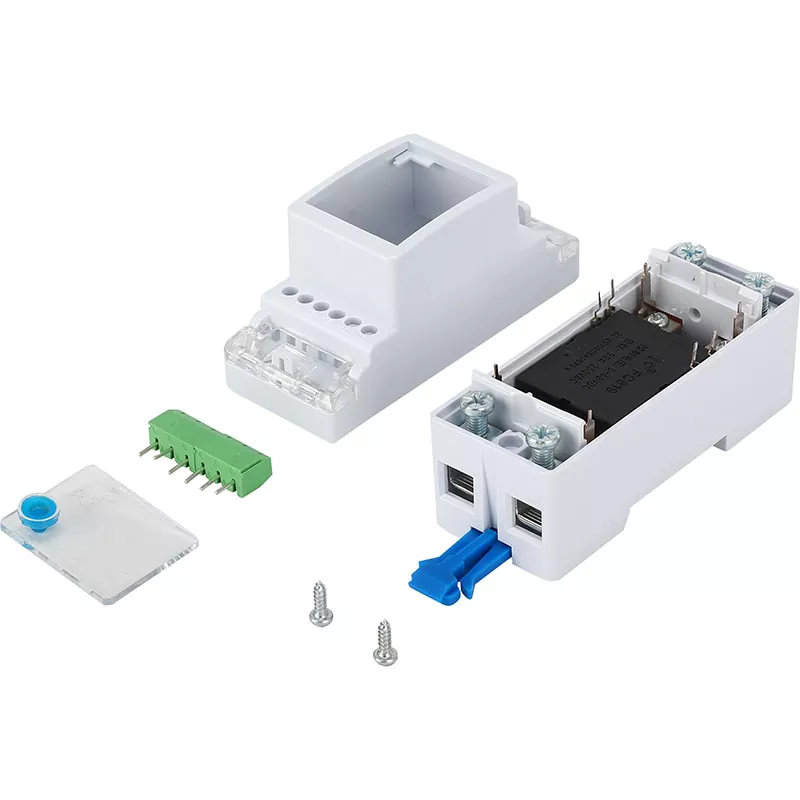

Single-Phase 2P Rail Type Top-in-Bottom-Out Latching Relay performs well in various electrical control systems. The wired welding style facilitates users to quickly connect on site, while the soldering pin board style avoids the risk of welding errors by simplifying the wiring process and improves the stability and safety of the product. This product is very suitable for high-power electrical equipment and can play an important role in power management and automation control.

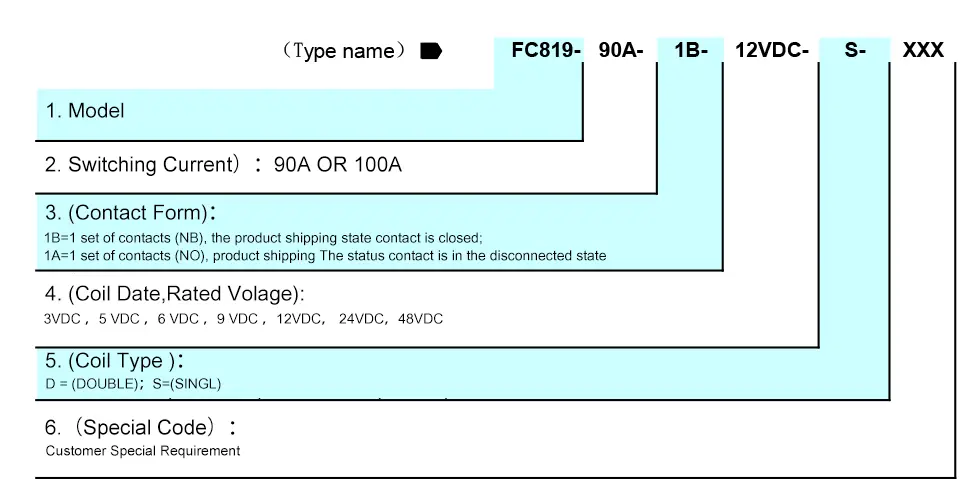

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
 COIL  RESISTANCE
      (Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 90A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 90A
(MAX.SWITCHING POWER) 22500VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 38g

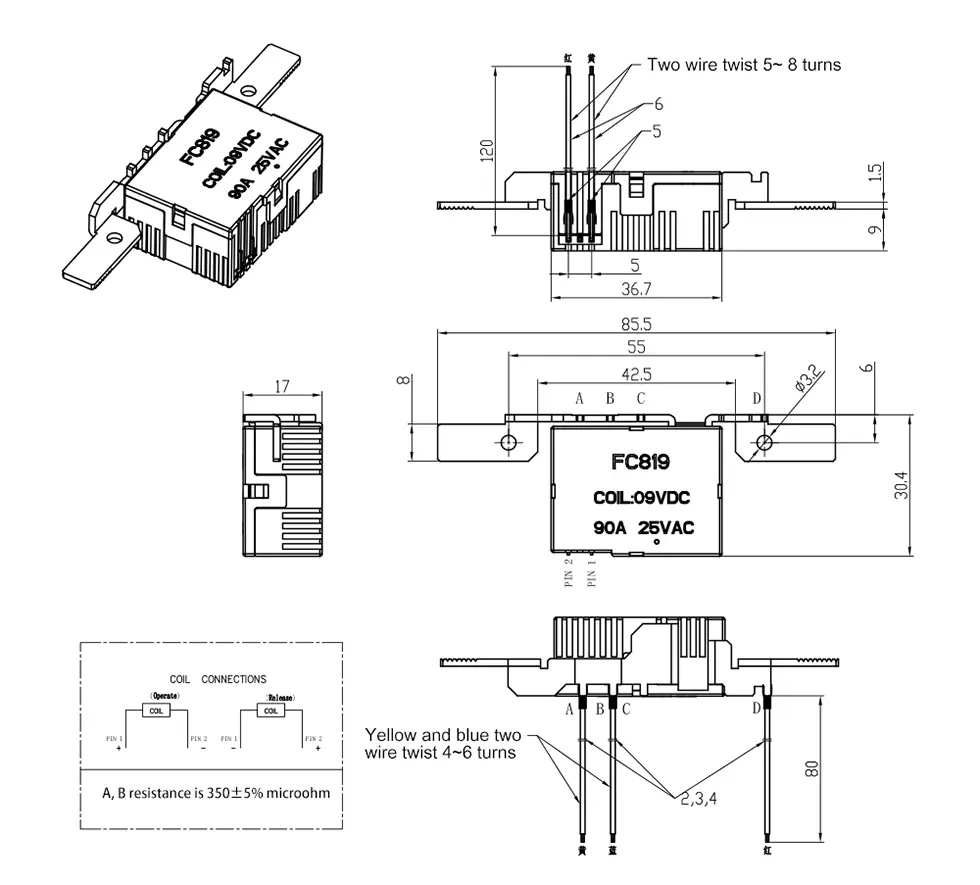

(OVERALL DIMENSION) (in drawing)
