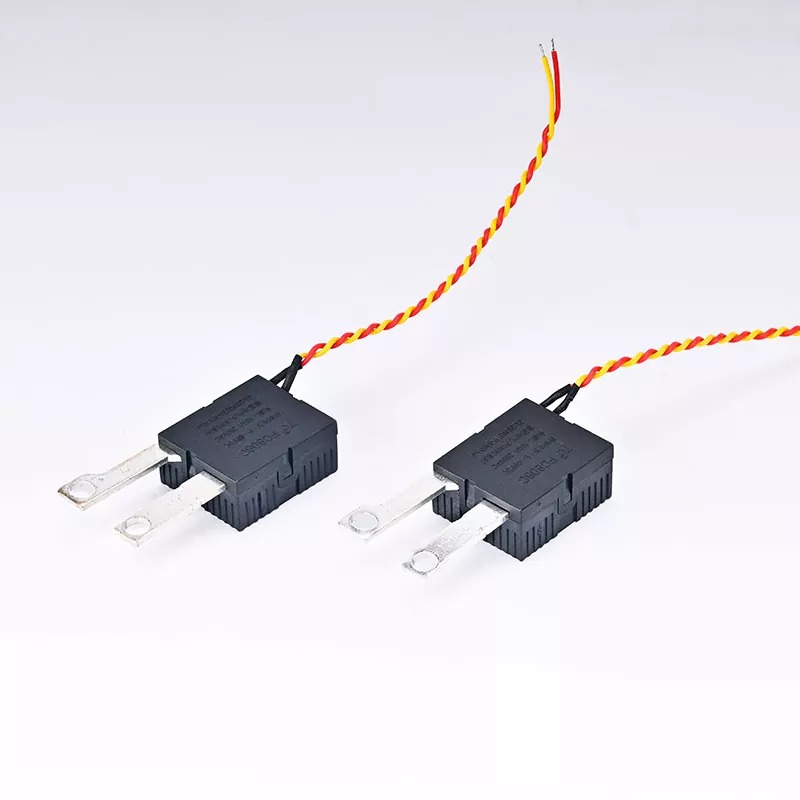

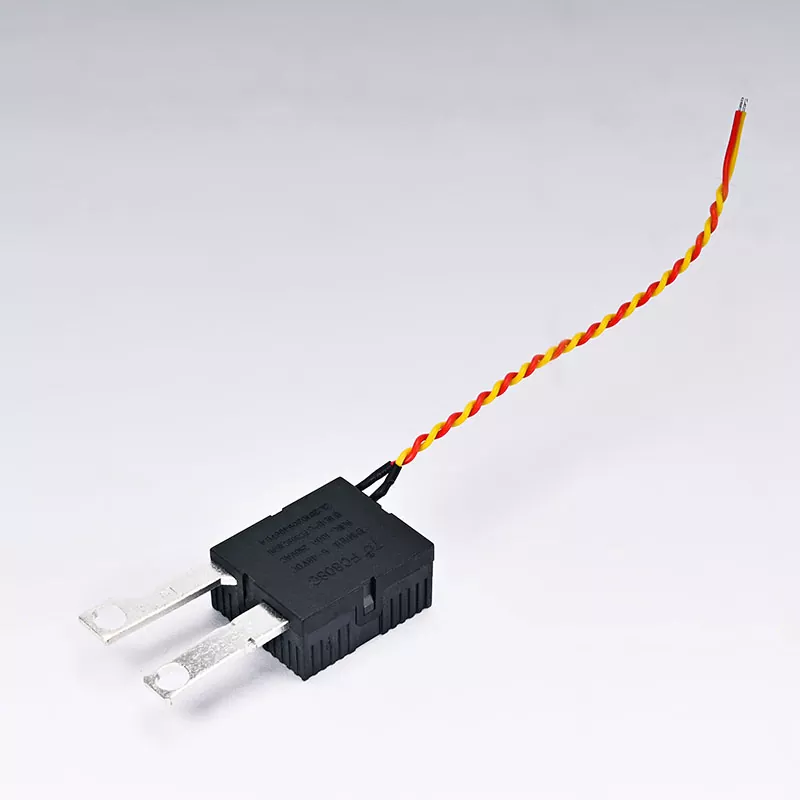

100A Three-Phase Wall-Mounted Latching Relay

The CT-100A Three-Phase Wall-Mounted Latching Relay supports a wide range of drive voltages, effectively improving compatibility and meeting the needs of different electrical environments. Whether used in traditional power systems or modern smart grids, the CT-100 Latching Relay can provide a reliable solution to ensure accurate control and monitoring of current.

Type: Magnetic Latching Relay for Three-Phase Wall Meters

Rated Current: 100A

Drive Voltage: 6VDC- 48VDC

Electrical Life: ≥15,000 Times

Contact Form: Can be Configured as Normally Open (NO) or Normally Closed (NC)

Operating Temperature Range: -20°C to 60°C

Dimensions: See product data sheet for specific dimensions

The CT-100A Three-Phase Wall-Mounted Latching Relay is a high-efficiency electrical control device, mainly used for monitoring and control of three-phase power systems. The relay uses magnetic latching technology to consume almost no power while maintaining the working state, effectively improving the energy efficiency of the system and suitable for high-frequency use occasions. With its electrical life of up to 15,000 times, users can enjoy stable power monitoring without frequent equipment replacement.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
      (Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
 Single  DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 100A  250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 100A
(MAX.SWITCHING POWER) 25000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 40g

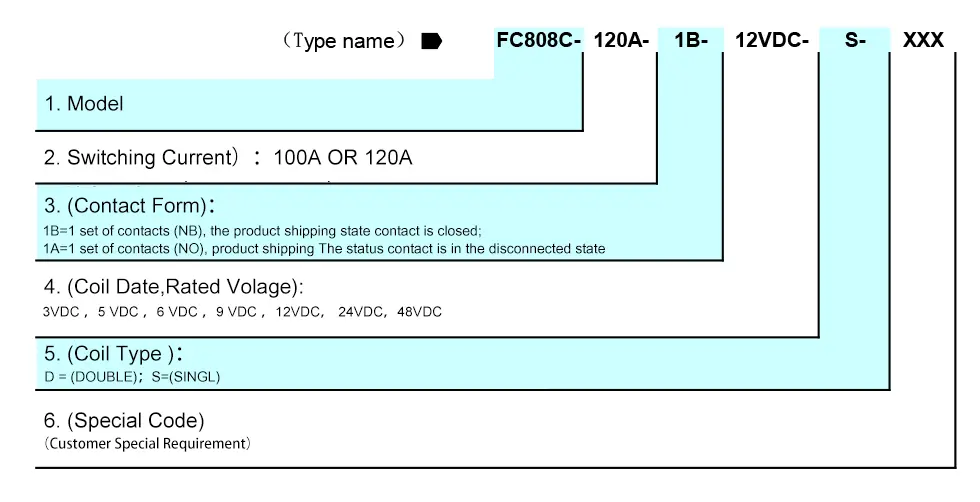

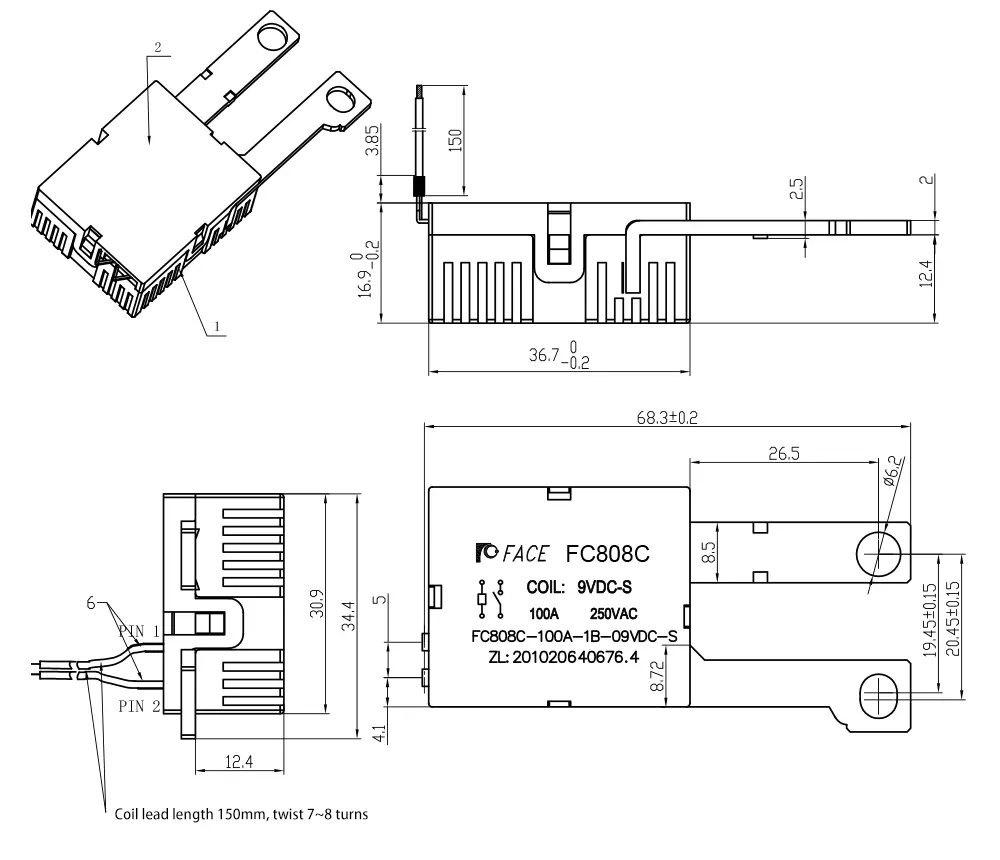

(OVERALL DIMENSION) (in drawing)
