100A Single-Phase 4P Rail Type Latching Relay
  • 100A Single-Phase 4P Rail Type Latching Relay100A Single-Phase 4P Rail Type Latching Relay
  • 100A Single-Phase 4P Rail Type Latching Relay100A Single-Phase 4P Rail Type Latching Relay

100A Single-Phase 4P Rail Type Latching Relay

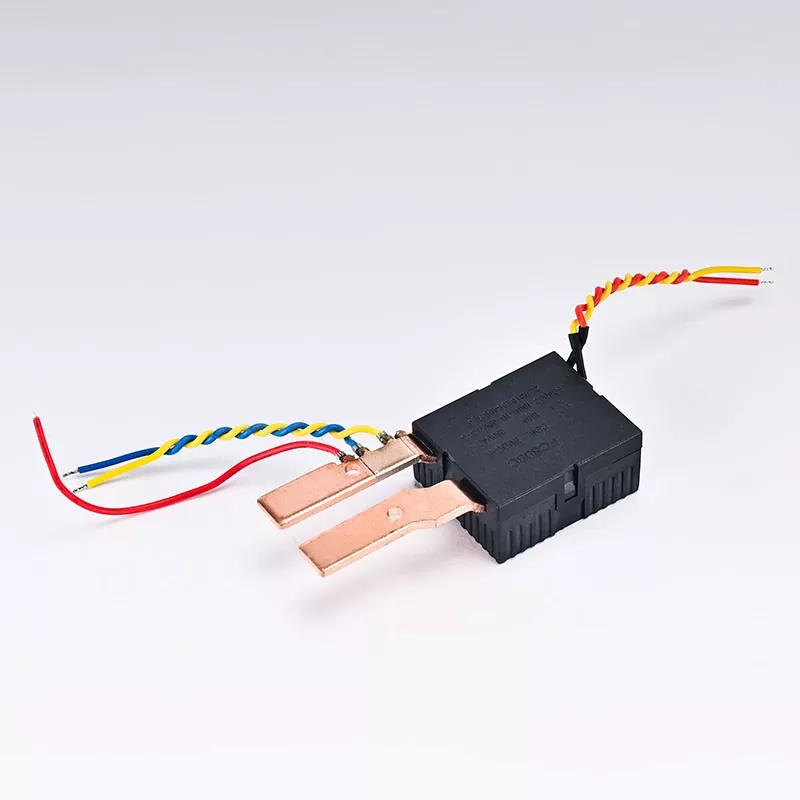

The 100A single-phase 4P rail type latching relay produced by Face Electric has excellent current carrying capacity and low sampling resistance, which can meet the high-performance requirements of modern electrical applications. With advanced magnetic latching technology, this relay consumes almost no power in the holding state, which is an ideal solution for promoting sustainable smart energy management.

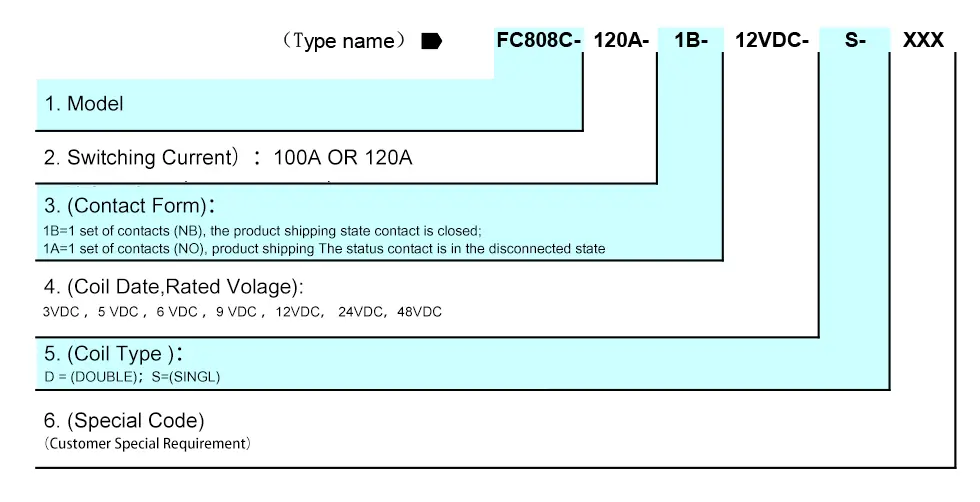

Type: 100A single-phase 4P rail type latching relay

Rated current: 100A

Drive voltage: 6VDC-48VDC

Sampling resistance: 200 micro-ohms (μΩ)

Installation method: standard DIN rail installation

Operating temperature range: -20°C to 60°C

Dimensions: See product drawings for specific dimensions

Designed for smart power systems, this 100A single-phase 4P rail type latching relay provides a reliable solution to manage current flow. The four-contact design of the case enables it to easily control multiple outputs, making it suitable for use in scenarios where multiple loads need to be managed simultaneously. The rail-mounted design of this relay greatly simplifies the installation process, making it an ideal choice for electrical cabinets and automated control systems. The product can withstand operating temperatures from -20°C to 60°C, ensuring its reliability and stability in a variety of environments. After rigorous testing, the relay can operate normally under various working conditions to better meet the needs of smart power systems.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
 COIL  RESISTANCE
      (Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 100A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 100A
(MAX.SWITCHING POWER) 25000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 40g

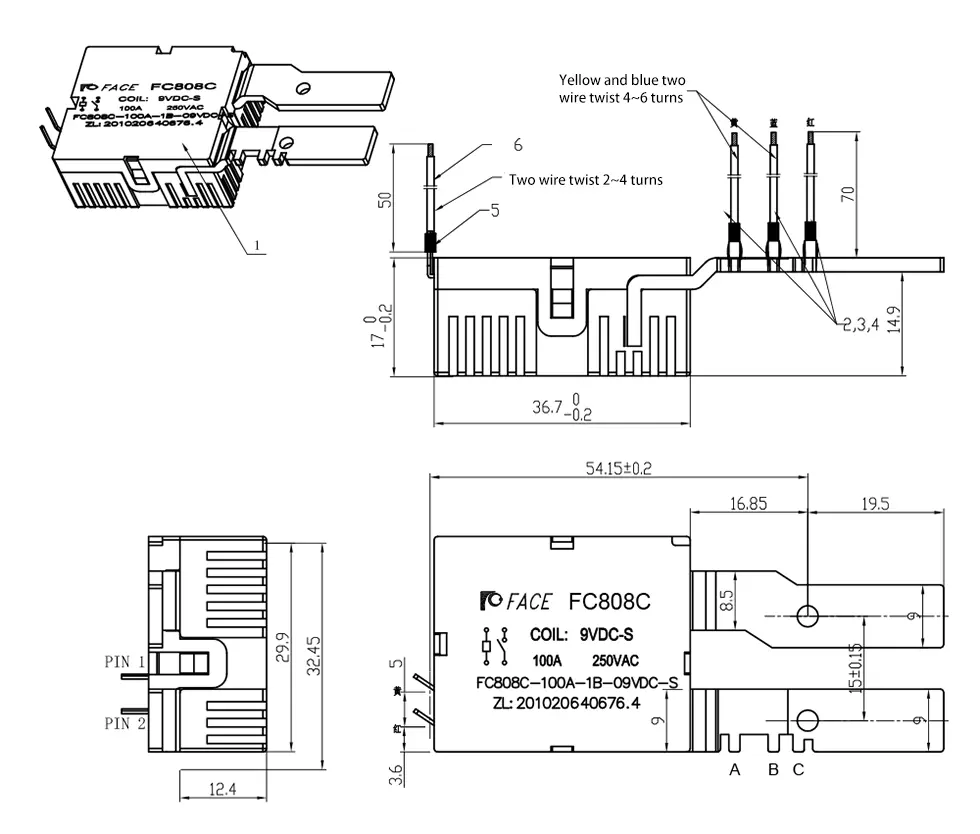

(OVERALL DIMENSION) (in drawing)
