Single-Phase 2P Rail Type Left-in-Right-Out Latching Relay
  • Single-Phase 2P Rail Type Left-in-Right-Out Latching RelaySingle-Phase 2P Rail Type Left-in-Right-Out Latching Relay
  • Single-Phase 2P Rail Type Left-in-Right-Out Latching RelaySingle-Phase 2P Rail Type Left-in-Right-Out Latching Relay

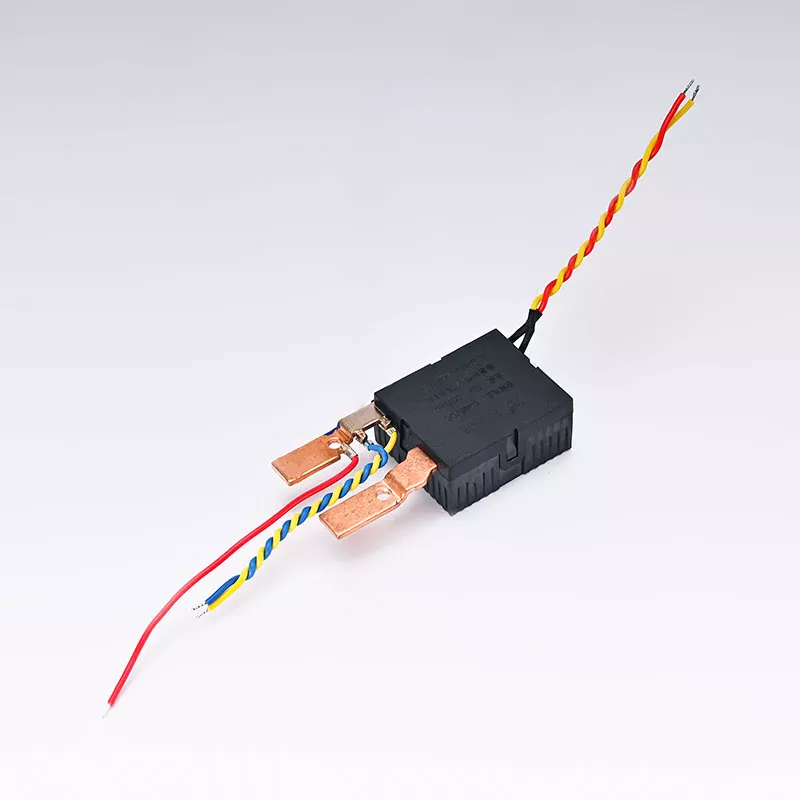

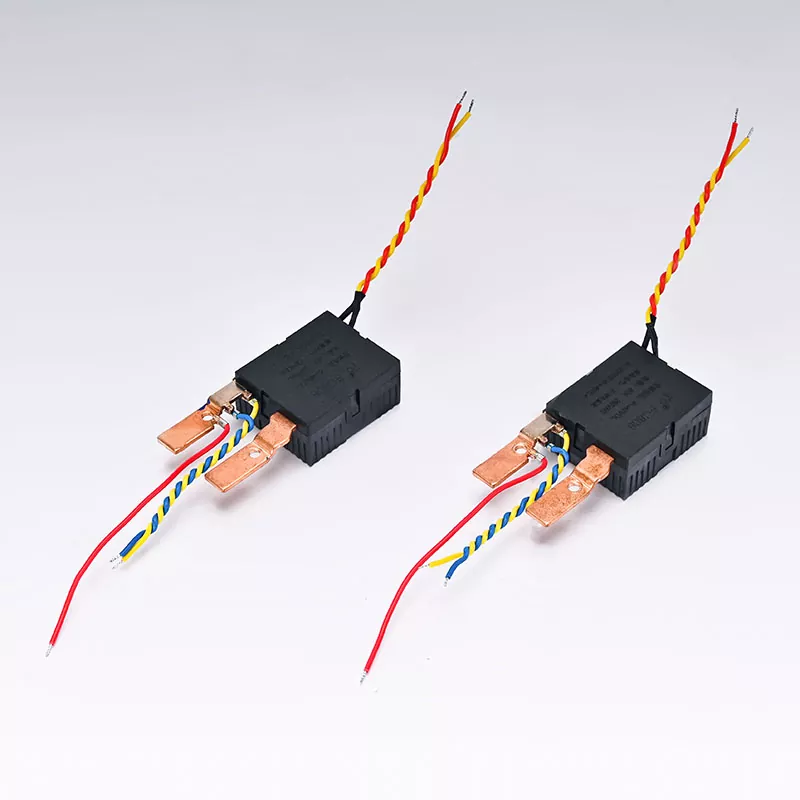

Single-Phase 2P Rail Type Left-in-Right-Out Latching Relay

This high quality single-phase 2P rail type left-in-right-out latching relay has excellent electrical performance and flexible wiring methods, making it perform well in environments with limited space. The use of advanced magnetic latching technology can maintain high reliability when in the closed state and consume almost no power. The overall structure uses high-quality materials to ensure its long-term reliability in various industrial applications.

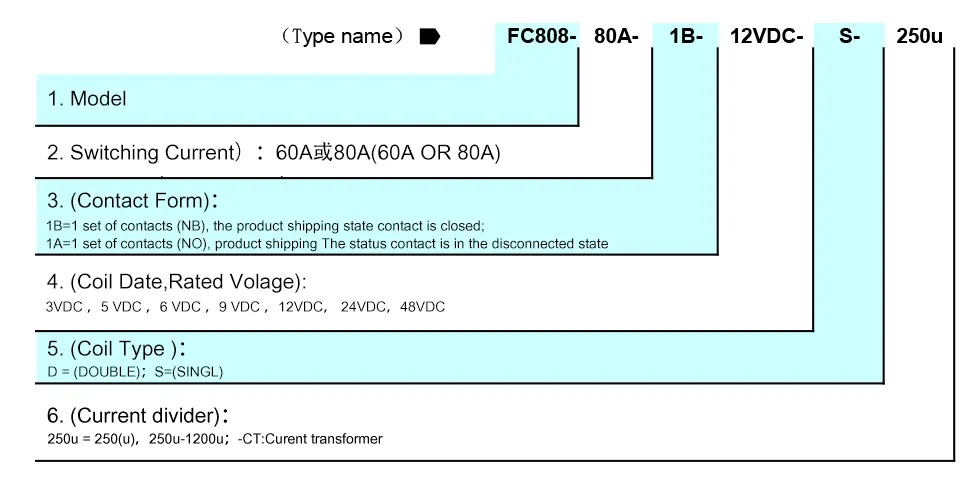

Type: Single-phase 2P rail-type left-in-right-out magnetic latching relay

Rated current: 80A

Drive voltage: 6VDC-48VDC

Sampling resistance: 350 micro-ohms (μΩ)

Mounting method: Standard DIN rail mounting

Operating temperature range: -20°C to 60°C

Dimensions: See the product data sheet for specific dimensions

This Single-Phase 2P Rail Type Left-in-Right-Out Latching Relay adopts a left-in-right-out wiring design, making the wiring process easier and more efficient. Its 350 micro-ohm sampling resistance means that the relay can maintain extremely low resistance during normal operation, which is essential for efficient current transmission and minimized heat generation. In addition, the 80A rated current level ensures that it can still work stably under high load conditions, suitable for use in a variety of environments such as industrial and commercial.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 80A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 80A
(MAX.SWITCHING POWER) 20000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT &COIL) 6000VAC
(CONTACT & CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 38g

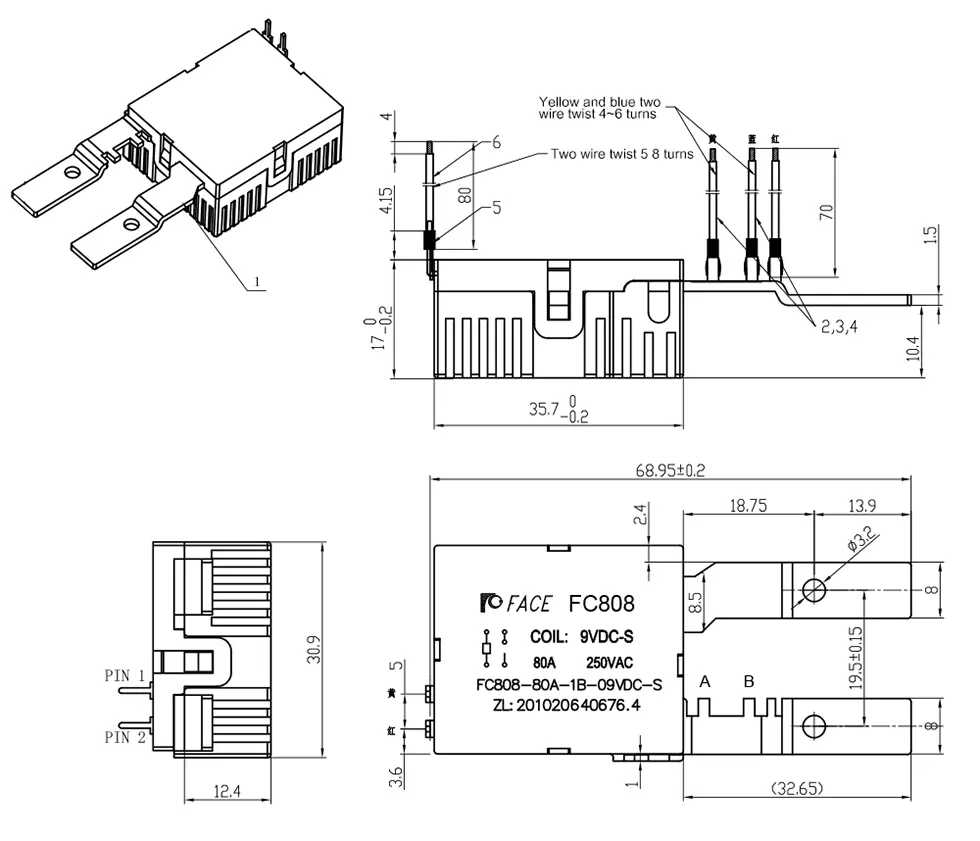

(OVERALL DIMENSION) (in drawing)
