The continuous improvement of electric vehicle charging technology and the popularization of charging pile construction make it increasingly likely that electric vehicles will become the future direction of automobile development. However, charging is still one of the most concerned pain points for electric vehicle buyers. But this situation is gradually changing, as the government is gradually opening public charging facilities to the public to attract more social investment. This article will introduce in detail the basic principles of electric vehicle charging piles and their application in charging stations.
First, let's talk about the working principle of charging piles. Its function is similar to that of gas pumps at gas stations. It mainly consists of three parts: charging module, control module, and metering module. The charging module is used to adjust and output power to electric vehicles; the control module is mainly responsible for real-time monitoring of charging status and adjusting charging rate; the metering module is used to calculate the charging power and cost.
In order to meet the needs of different models and power sizes, charging piles usually have two modes to choose from: conventional charging and fast charging. Users only need to use a dedicated charging card to swipe the card on the human-computer interaction interface to complete multiple instructions such as charging mode, charging time setting, and fee payment. At the same time, the charging pile is also equipped with a display screen that can display key information such as charging amount, cost, and remaining charging time in real time.
It should be noted that when designing an electric vehicle charging station, special attention should be paid to the selection of components. For example, the technical requirements for latching relays for car charging piles and contactors are quite high, and they play an extremely important role in ensuring the stability, accuracy and safety of the charging network.

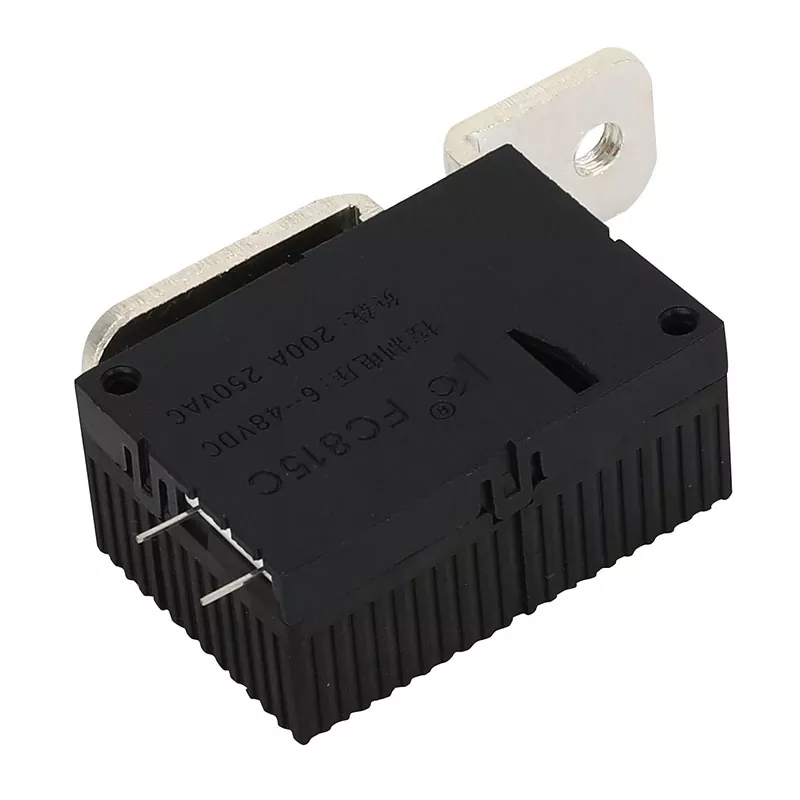

The latching relay for car charging pile consists of a coil and a contact. When the coil is energized, a magnetic field is generated, causing the contact to open and close, thereby controlling the switch of the charging pile current. The shell of the charging pile relay is usually made of heat-resistant and corrosion-resistant materials, such as porcelain bottles, plastics, and metals. In terms of appearance, the charging pile relay is generally small to fit the compact space of the charging pile circuit board.
Power components, including relays and contactors, work together to achieve precise charging process control and lossless conversion operations to ensure efficient and stable operation of the charging station electrical system. In addition, the charging station must also be equipped with hardware equipment that is not affected by weather and environmental changes to ensure the charging experience of electric vehicle owners.
Latching Relay for Car Charging Pile is an electrical component that can control the switch of the circuit. It is usually installed on the main control board of the charging pile to control the charging process of the charging pile, including starting the charging process, monitoring the current, detecting faults, etc. The importance of the charging pile relay lies in helping to ensure the normal operation of the charging pile, while also improving the safety of the charging pile.
At present, the commonly used charging pile relays include mechanical relays and solid-state relays. Mechanical relays use the power of springs to open or close the contacts; solid-state relays use semiconductor technology to control the circuit. In comparison, solid-state relays have a longer service life and more stable performance, and are suitable for environments with frequent switching.
Latching Relay for Car Charging Pile plays a vital role in charging piles. It can not only monitor current and prevent safety problems such as overcurrent and overload, but also improve the efficiency of charging piles and save energy consumption. During the use of the charging pile, if there is abnormal charging, faults, etc., the charging pile relay can also detect it in time, thereby reducing losses. Therefore, high-quality charging pile relays are of great significance to ensure the stable operation of the charging pile, improve charging efficiency, and extend the service life of the charging pile.
If you want to further improve charging efficiency and reduce charging costs, you need to fully consider the requirements of key components such as relays, connectors and cables when planning electric vehicle charging facilities.
-
