Three-Phase 7P Rail-Type Integrated Latching Relay

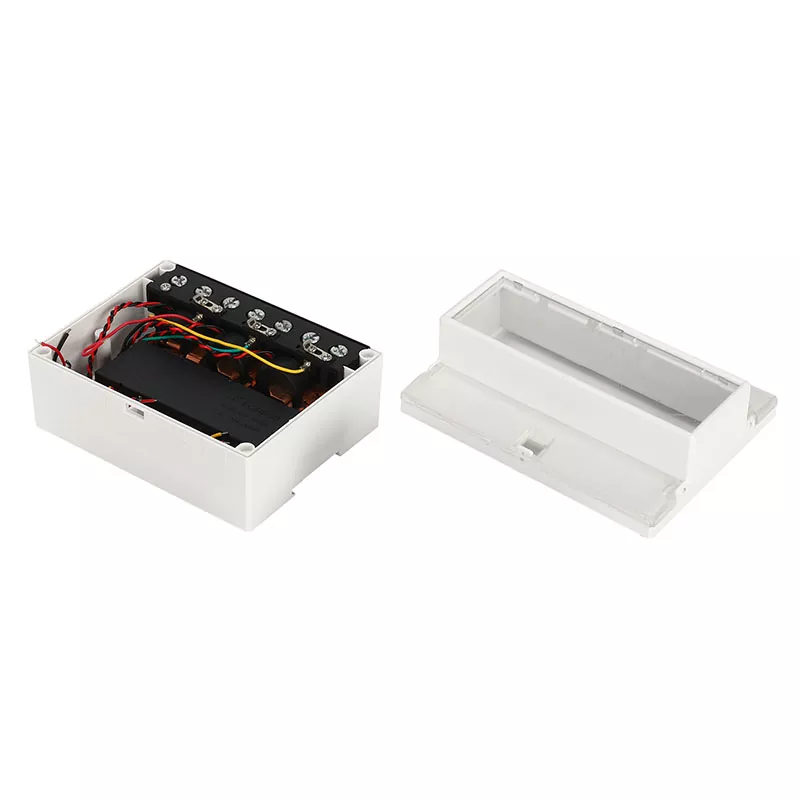

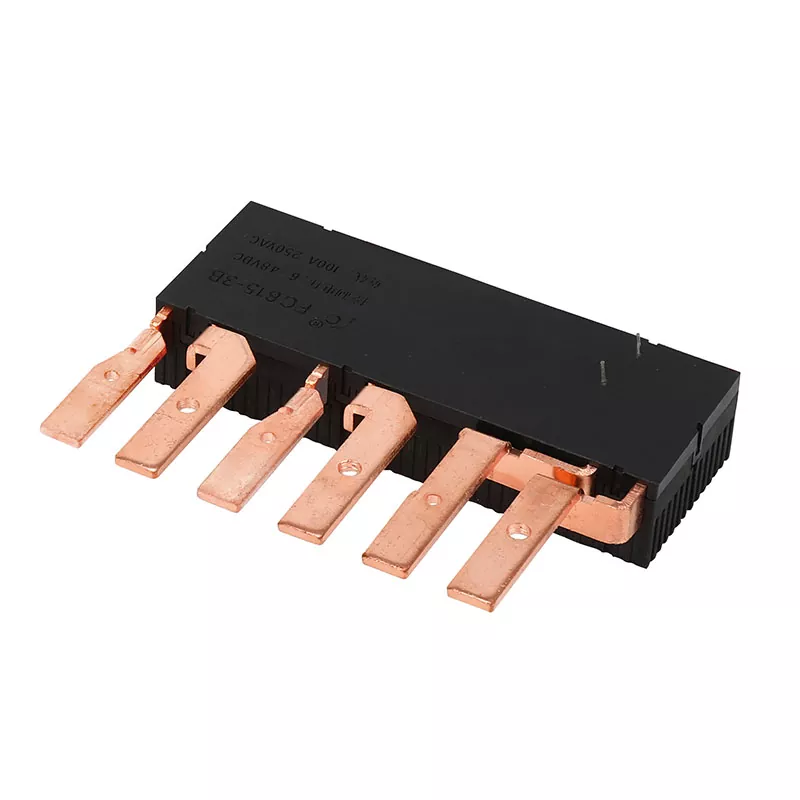

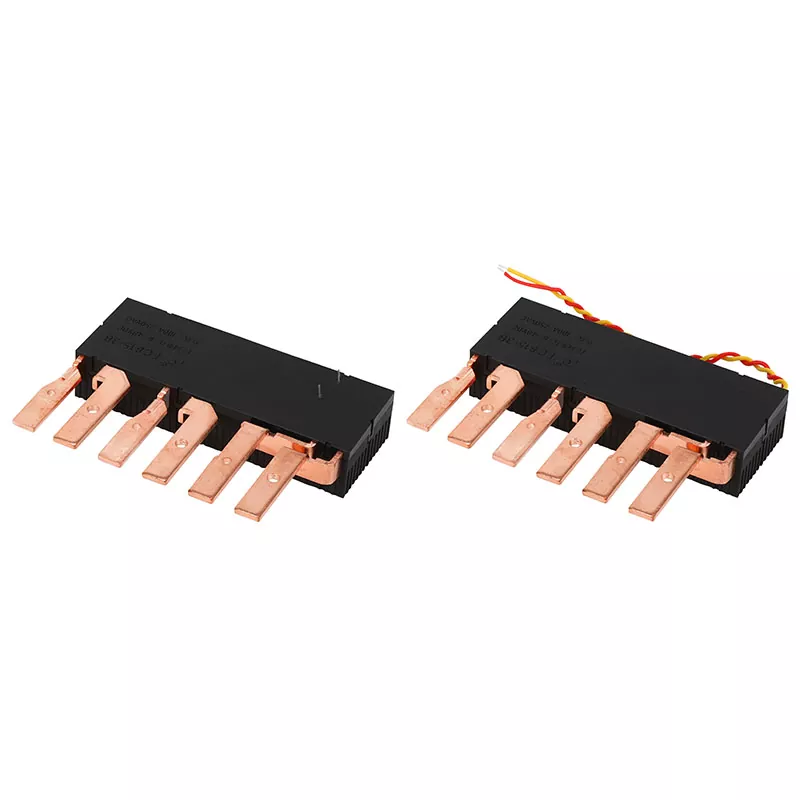

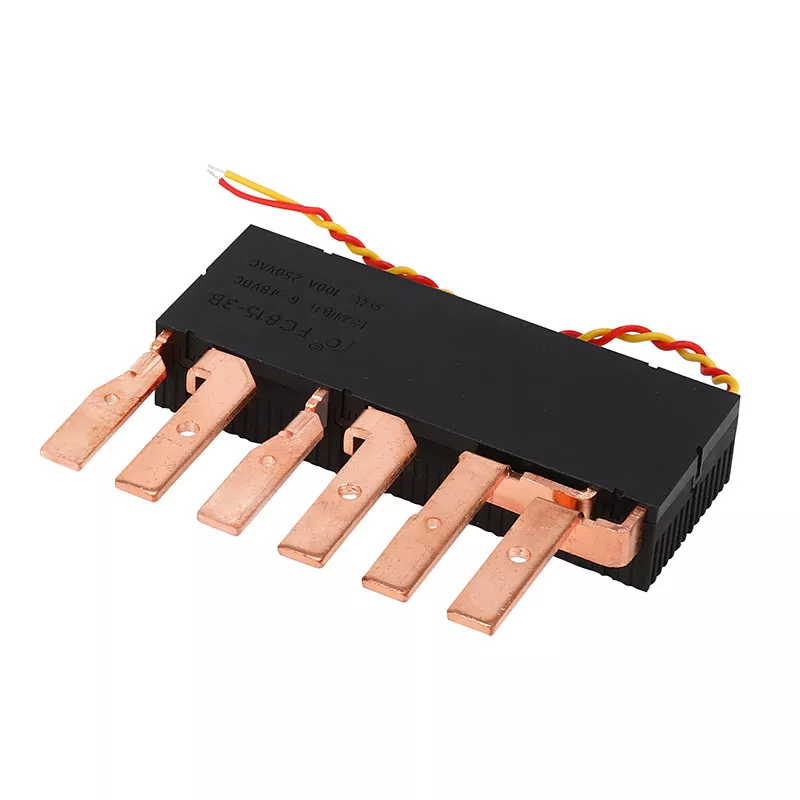

Three-Phase 7P Rail-Type Integrated Latching Relay is an important component in modern power monitoring and control systems, designed to improve the efficiency and reliability of the system. Welcome to our factory to buy the latest sales, low prices and high quality Latching Relay. Looking forward to working with you.

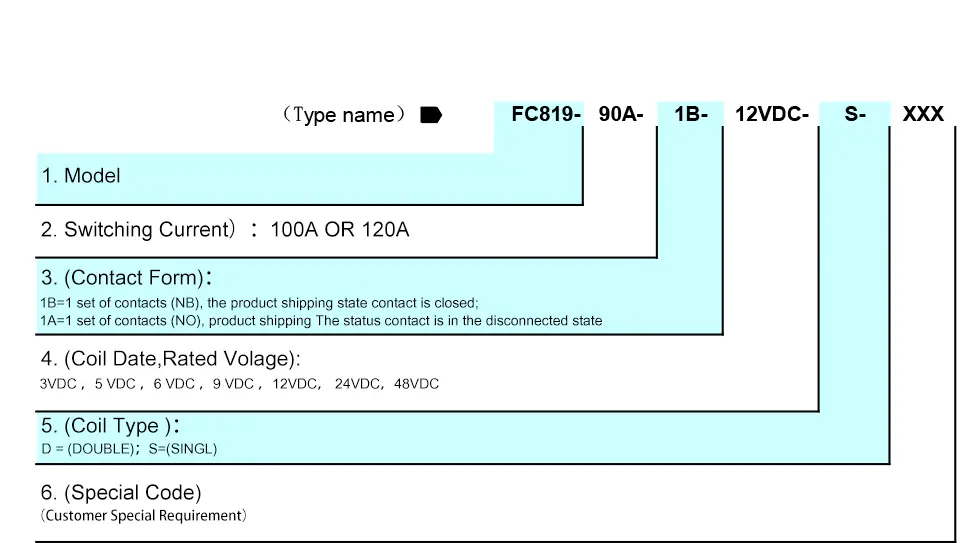

Type: Three-phase 7P rail integrated magnetic latching relay

Rated current: 100A

Driving voltage: 6VDC - 48VDC

Electrical life: ≥15000 times

Contact form: can be configured as normally open (NO) or normally closed (NC)

Operating temperature range: -20°C to 60°C

Dimensions: See product data sheet for specific dimensions

Compared with traditional split relays, this one-piece relay adopts a highly integrated design, which significantly reduces the number of connecting lines and components, thereby reducing the risk of failure and enhancing the overall stability and durability of the system. The Three-Phase 7P Rail-Type Integrated Latching Relay is the ideal solution to ensure efficient operation of current monitoring and control. It reduces the problems of numerous split relay components and complicated installation by integrating multiple functions into one unit. High-strength materials and craftsmanship ensure its durability in harsh industrial environments, while its unique design concept makes the initial installation and subsequent maintenance of the network system easier. With its integrated features, the relay can be widely used in power monitoring, automation control and renewable energy management, greatly improving the performance and service life of the entire system.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
牛  9 28.9  14.5/14.5 2.80  5.60  ≤6.3 ≤6.3 48
12  51.4  25.7/25.7 ≤8.4 ≤8.4 60
24  205.7  102/102 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 3B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 100A  250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 100A
(MAX.SWITCHING POWER) 25000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 30ms Max
(RELEASE TIME) 30ms  Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT &COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 140g

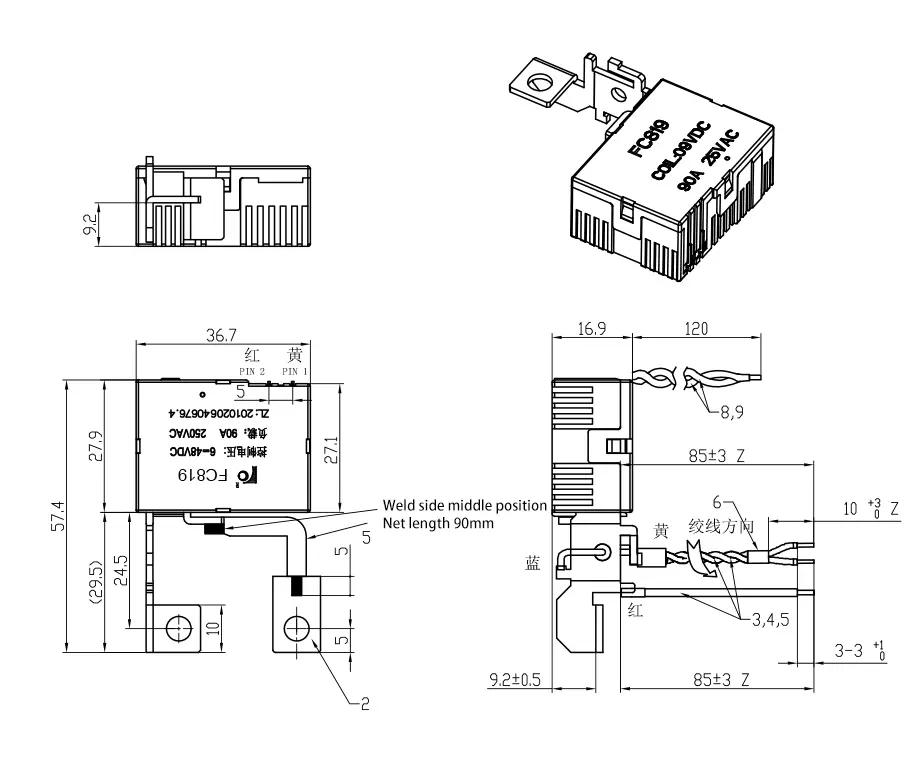

(OVERALL DIMENSION) (in drawing)
