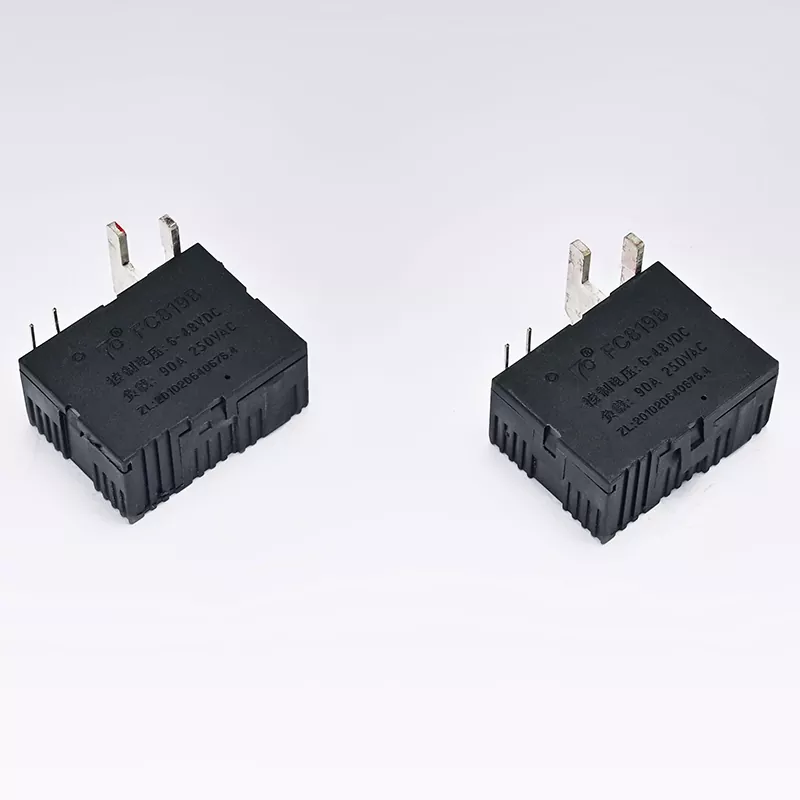

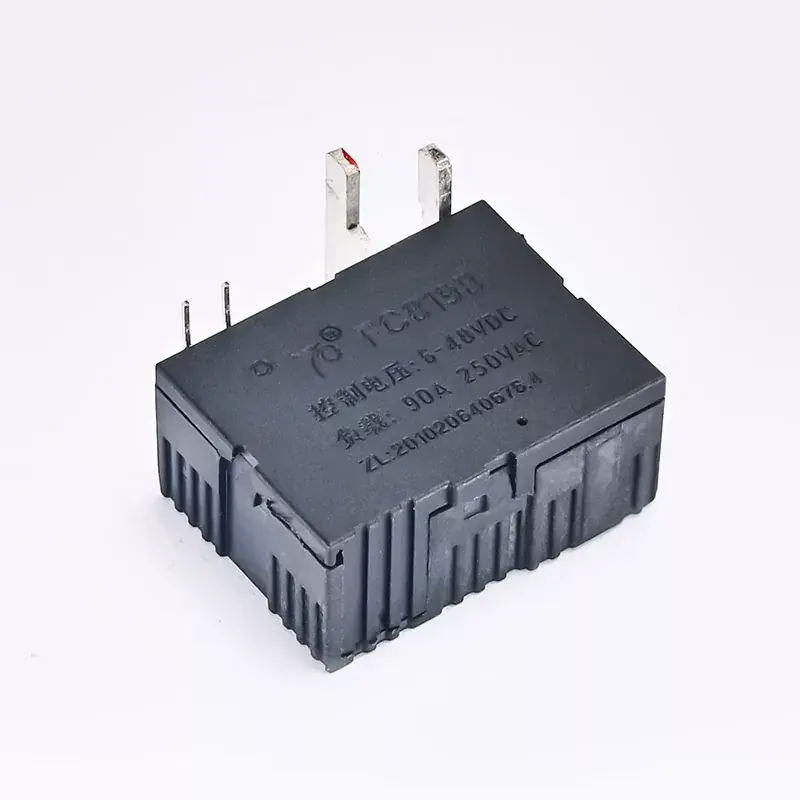

Equipment Control System Latching Relay

Our latching relay is designed for equipment control systems and supports matching multiple product forms according to different usage environments. This Equipment Control System Latching Relay has high reliability and flexibility, adapts to the control needs of various industrial and household equipment, and is an important part of improving equipment automation and intelligence.

Rated current: 80-120A (generally suitable for 10A to 100A)

Working voltage: 6-48V (supports a wide voltage range)

Contact form: Different contact forms can be provided according to needs (such as 1C, 2C, etc.)

Working temperature: -40°C to +85°C (adapt to various environmental conditions)

Working mode: magnetic latching relay

Size: Various forms, detailed dimensions can be provided according to specific models

Weight: Lightweight design, easy to install and transport

This Equipment Control System Latching Relay is an ideal choice for modern equipment control systems, combining high performance and flexible design. Whether it is industrial automation, home control or other equipment management, it can provide stable switching operation and adapt to various working environments. Its latching characteristics not only effectively reduce energy consumption, but also extend the working life of the equipment, significantly improving the user experience.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 90A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 90A
(MAX.SWITCHING POWER) 22500VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MΩ Min.
(WEIGHT) 38g

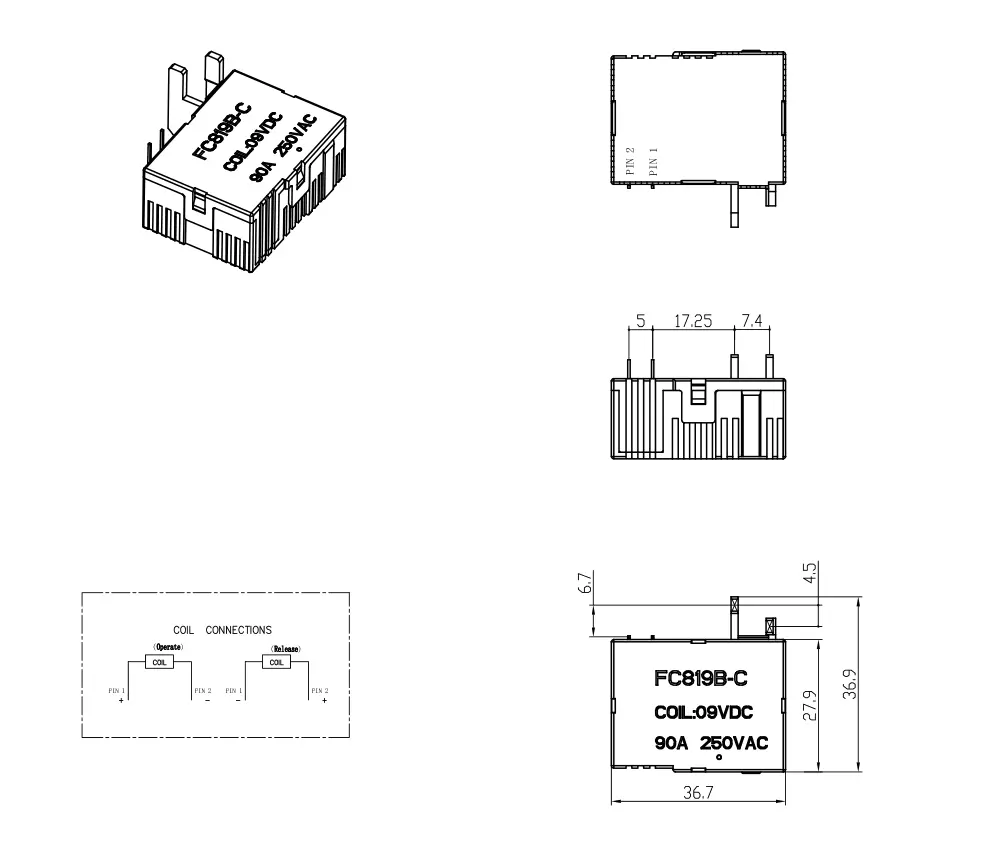

(OVERALL DIMENSION) (in drawing)
