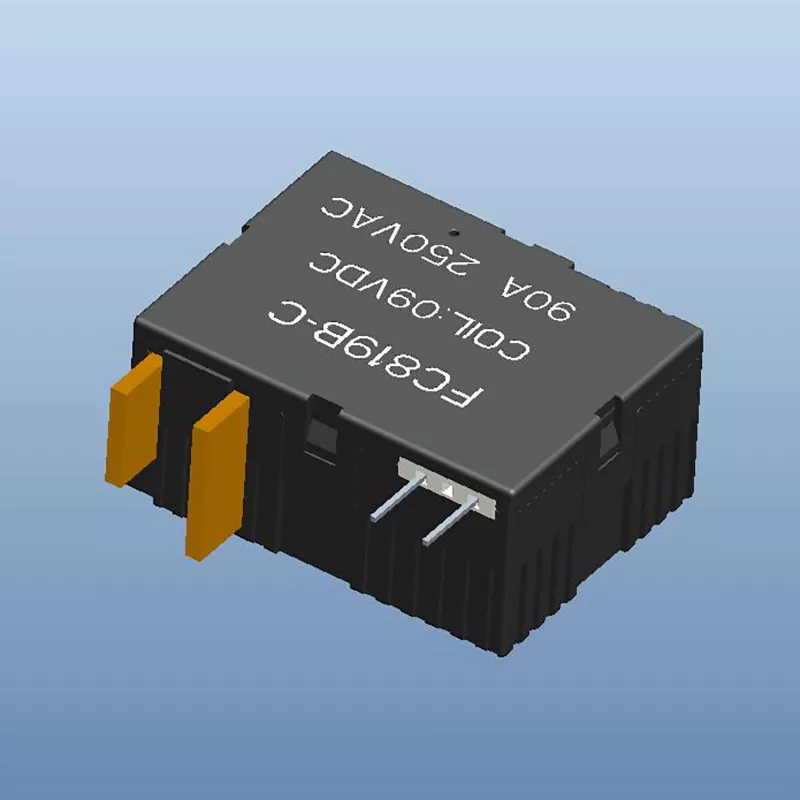

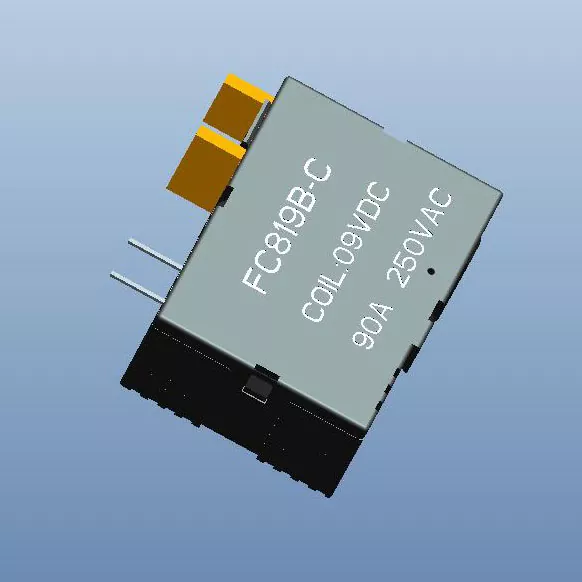

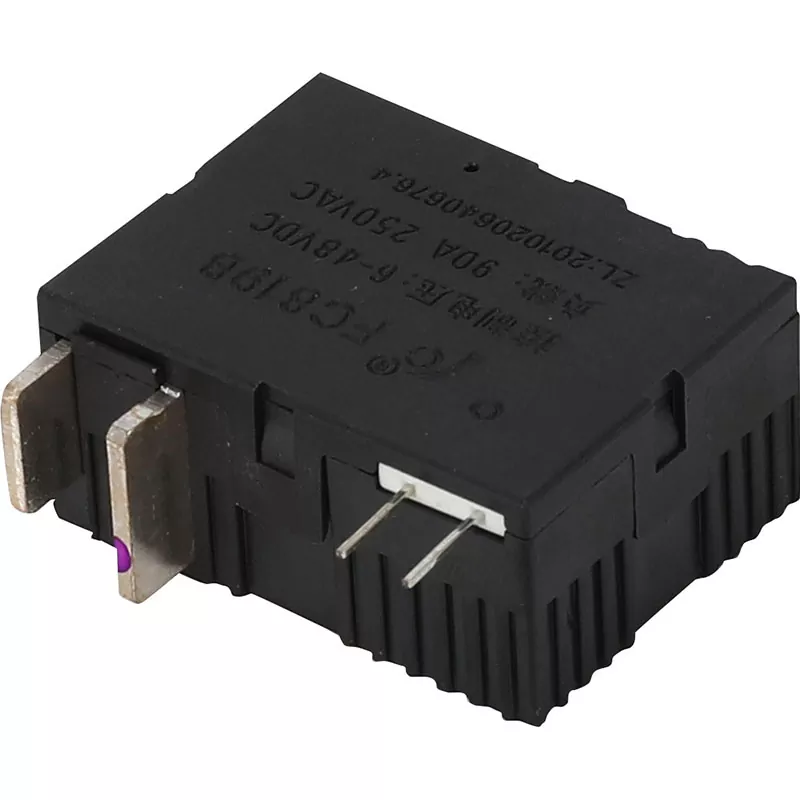

Boiler Control System Latching Relay

Our latching relay switches are specially designed for boiler control system heating and heating equipment. They have the advantages of high life and reliability and can meet the requirements of frequent switching. This Boiler Control System Latching Relay supports remote control and is particularly suitable for use in heating equipment in northern and Nordic countries, providing users with efficient and stable hot water and heating solutions.

Rated current: 90A (generally suitable for high load environments)

Working voltage: 6-48V (suitable for wide range voltage)

Contact type: Normally closed

Working temperature: -40°C to +85°C (suitable for cold northern climate)

Structure type: magnetic latching relay

Size: Provide detailed size according to specific model

Weight: Lightweight design, easy to install

This latching relay is widely used in boiler heating and heating equipment due to its high reliability and durability. Its unique design allows frequent switching without reducing service life and can cope with severe climatic conditions and high-load operation requirements. This makes the Boiler Control System Latching Relay an ideal choice for heating systems, serving both domestic and commercial users, ensuring a stable and continuous supply of hot water.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
      (Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY2
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 90A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 90A
(MAX.SWITCHING POWER) 22500VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT &COIL) 6000VAC
(CONTACT & CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 38g

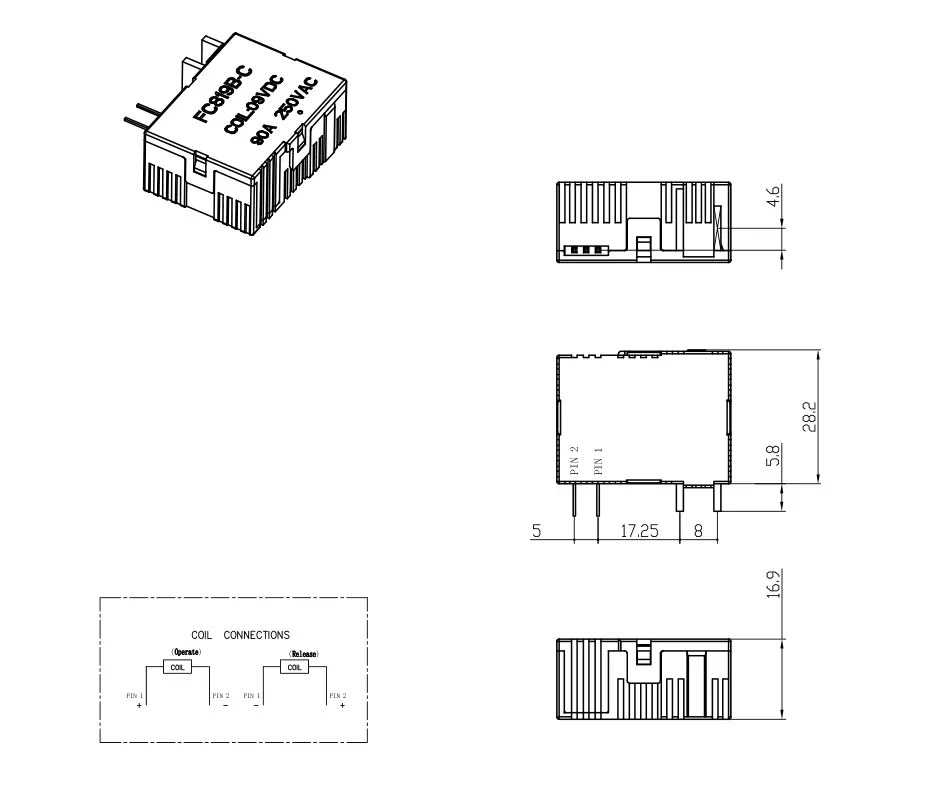

(OVERALL DIMENSION) (in drawing)
