What is a Latching Relay?

A latching relay is a type of electromechanical switch that retains its last state—either ON or OFF—even after the control signal is removed. Unlike traditional relays that require continuous power to maintain their state, latching relays only need a brief pulse of current to change their position. This unique feature makes them highly energy-efficient and ideal for applications where state retention is essential, even during power outages.


How Does a Latching Relay Work?


Latching relays can be single-coil or dual-coil designs:

- Single-Coil Latching Relay: A single pulse of current in one direction sets the relay to ON, while a pulse in the opposite direction resets it to OFF.

- Dual-Coil Latching Relay: Two separate coils control the relay: one to set it ON and another to reset it OFF.


Once the relay changes state, it remains in that position until another control signal triggers a change. This is achieved using a mechanical latching mechanism or a magnetic field that holds the internal switch in place.

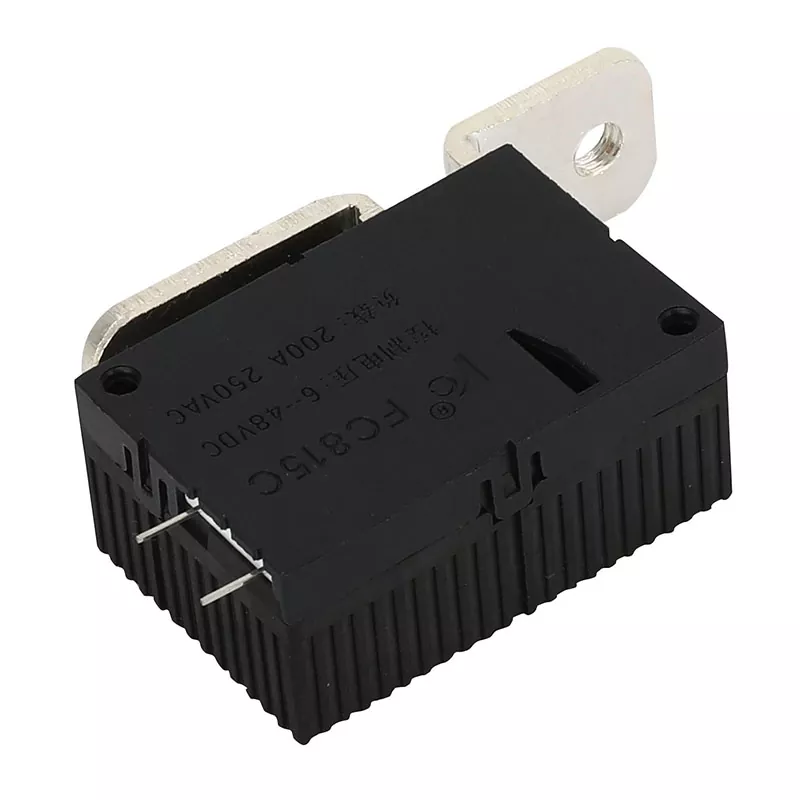

Latching Relay


Key Features of Latching Relays


1. Energy Efficiency: Latching relays only consume power during state transitions, making them ideal for battery-operated or energy-sensitive systems.

2. State Retention: The ability to maintain the last position without power ensures reliability in systems prone to power interruptions.

3. Durability: Reduced operation of coils minimizes wear and tear, enhancing the relay’s longevity.

4. Compact Design: Many latching relays are compact, making them suitable for applications where space is limited.



Applications of Latching Relays


Latching relays are widely used in various industries due to their efficiency and reliability. Common applications include:

- Smart Home Systems: Used in lighting and home automation for energy-saving purposes.

- Electric Meters: Essential in smart meters for switching and state memory functions.

- Telecommunications: Manage circuit connections with minimal power usage.

- Automotive Industry: Control systems like door locks, wipers, and seat adjustments.

- Industrial Equipment: Found in machinery where state retention is necessary during power outages.



Advantages of Latching Relays


- Power Savings: By consuming power only during state changes, they reduce energy costs significantly.

- Reliability: Their ability to maintain state during power loss ensures system integrity.

- Versatility: Suitable for both AC and DC systems, they can handle a wide range of voltages and loads.



Limitations of Latching Relays


While latching relays are highly efficient, they do have some limitations:

1. Complexity: The circuit design for controlling latching relays can be more complex than standard relays.

2. Cost: Latching relays are often more expensive than standard relays due to their advanced features.

3. Slower Switching: They may not be ideal for applications requiring rapid switching.



Conclusion


Latching relays are a powerful solution for systems requiring energy efficiency and state retention. From smart homes to industrial automation, these relays provide reliable performance while reducing power consumption. As industries increasingly focus on sustainability, latching relays are becoming a go-to component in modern electrical and electronic systems.


Understanding how latching relays work and their advantages can help engineers and designers make informed decisions to optimize their applications.
