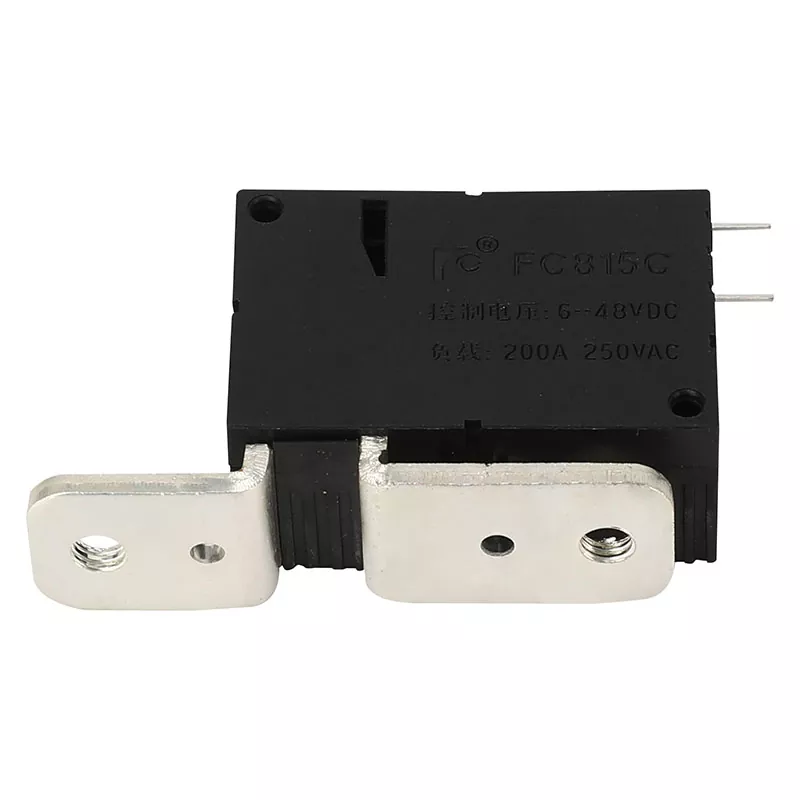

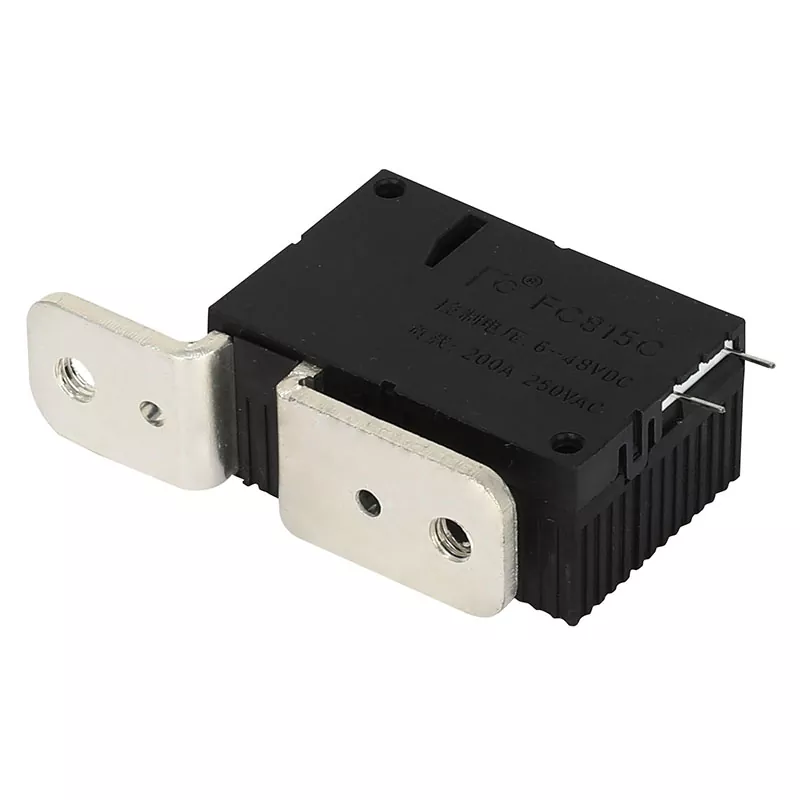

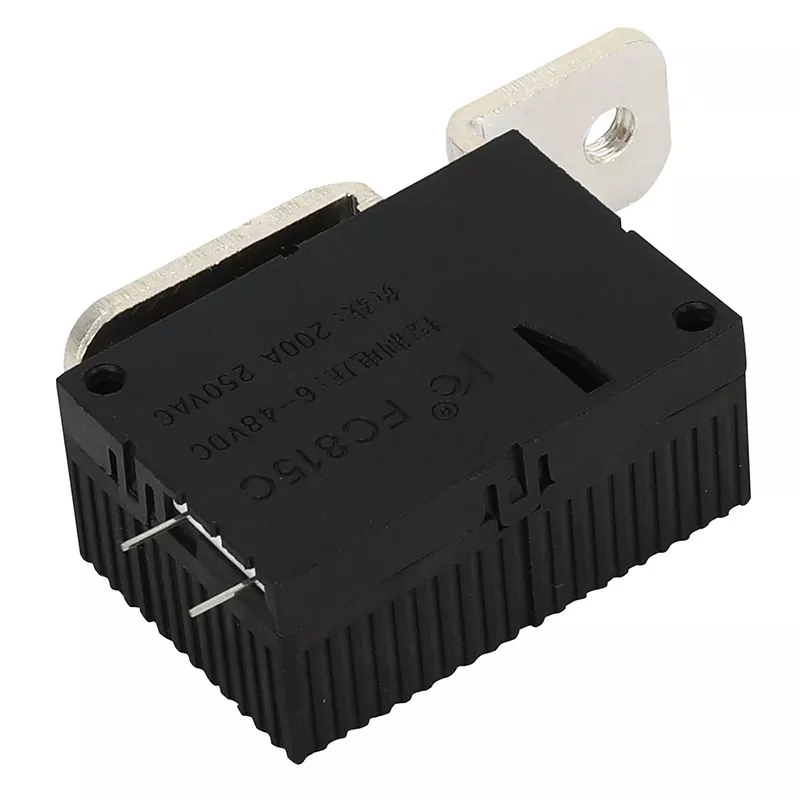

Car Battery Control 200A Latching Relay
  • Car Battery Control 200A Latching RelayCar Battery Control 200A Latching Relay
  • Car Battery Control 200A Latching RelayCar Battery Control 200A Latching Relay
  • Car Battery Control 200A Latching RelayCar Battery Control 200A Latching Relay

Car Battery Control 200A Latching Relay

With years of experience in production Car Battery Control 200A Latching Relay, Face Electric can supply a wide range of Latching Relay. High quality Latching Relay can meet many applications, if you need, please get our online timely service. In addition to the product list below, you can also customize your own unique products according to your specific needs.

Rated current: 200A

Applicable voltage range: 6V or 48V DC

Operating temperature range: -40°C to 100°C

Operating temperature range: -20°C to 70°C

Connection method: screw connection/terminal connection

Size: See details page drawing

This Car Battery Control 200A Latching Relay is a core component of high current electrical systems and can effectively manage the starting and protection of automotive batteries. Designed with a focus on safety and efficiency, it is particularly suitable for automotive and heavy equipment requiring high starting currents. No matter what the working environment is, it can ensure the fast response and stability of the electrical system and is suitable for harsh operating conditions. The Car Battery Control 200A Latching Relay is one of the most reliable power management solutions on the market, designed for high load applications and capable of withstanding rated currents up to 200A. The relay is suitable for starting switch solutions for large cars and trucks, ensuring safe and stable operation under high starting current requirements. With outstanding durability and efficiency, this product can significantly improve the overall performance and life of the electrical system.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
十 9 28.9  14.5/14.5 2.80  5.60  ≤6.3 ≤6.3 48
12  51.4  25.7/25.7 ≤8.4 ≤8.4 60
24  205.7  102/102 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.1mV
(CONTACT RATING) 200A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 200A  250VAC
(MAX.SWITCHING POWER) 50000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 30ms Max
(RELEASE TIME) 30ms Max
DIELECTRIC STRENGTH(50/60HZ,1Min)
CONTACT&COIL 6000VAC
CONTACT&CONTACT 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 100g

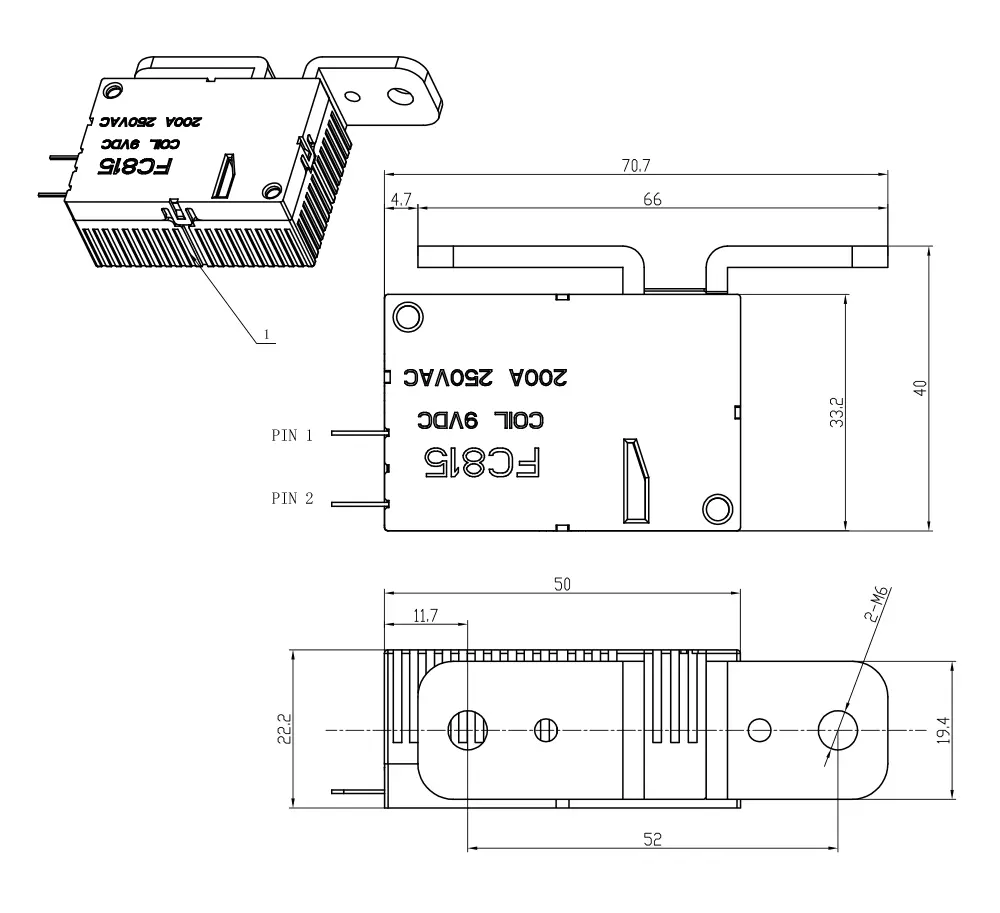

(OVERALL DIMENSION) (in drawing)
