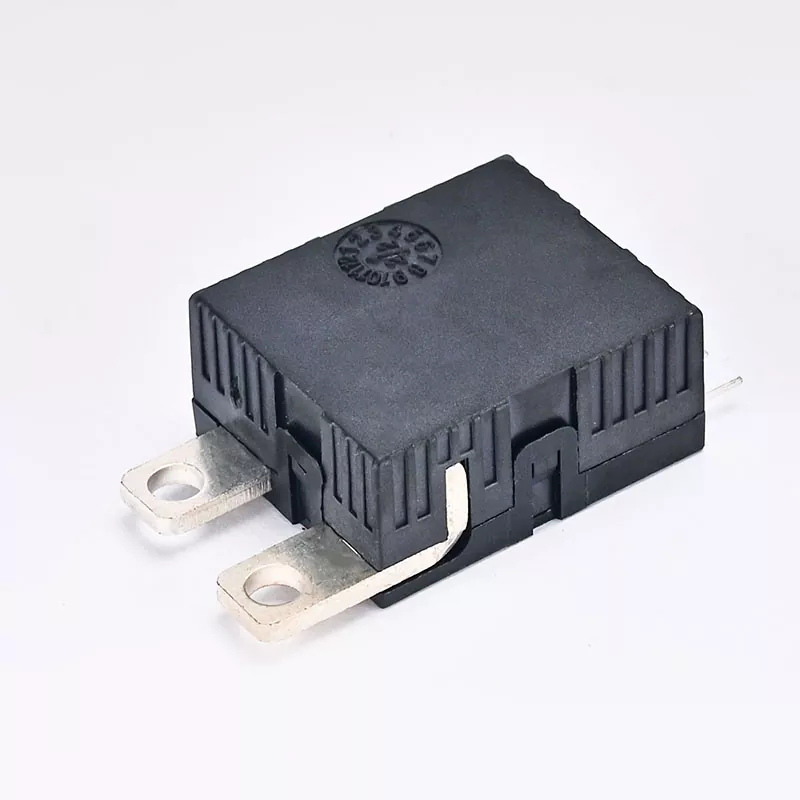

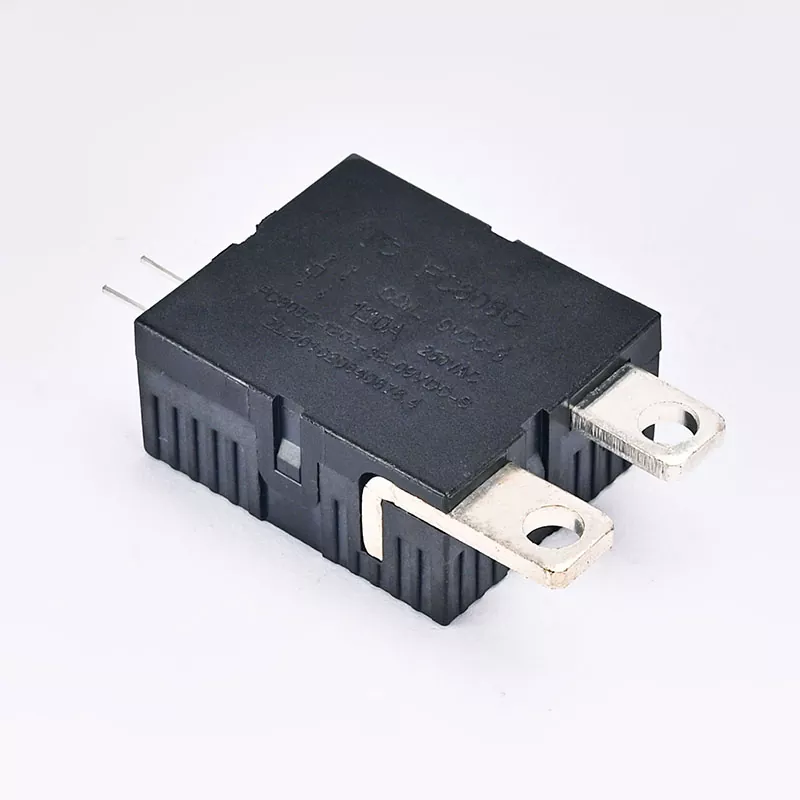

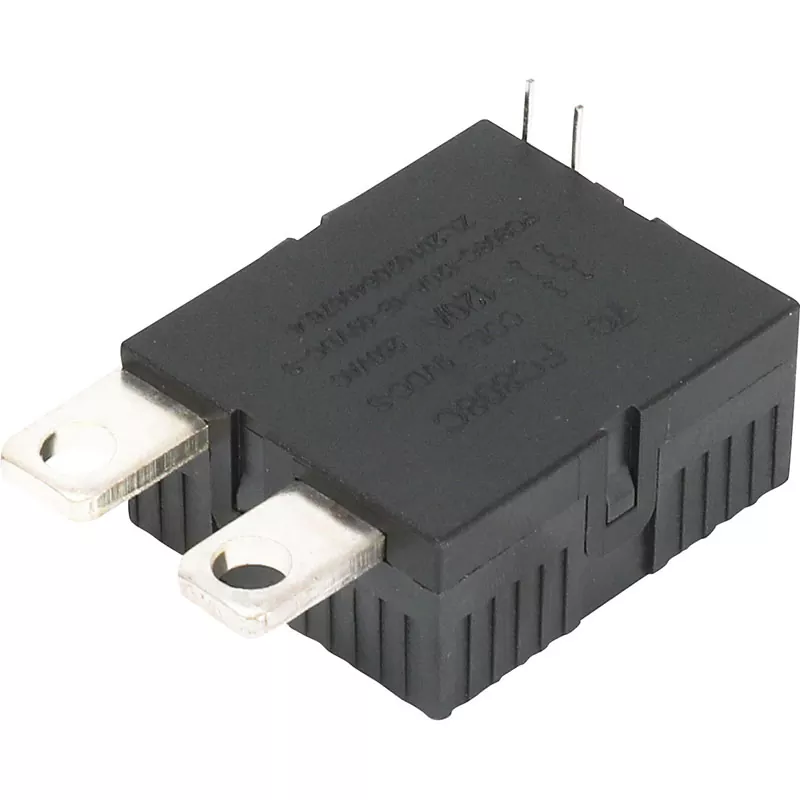

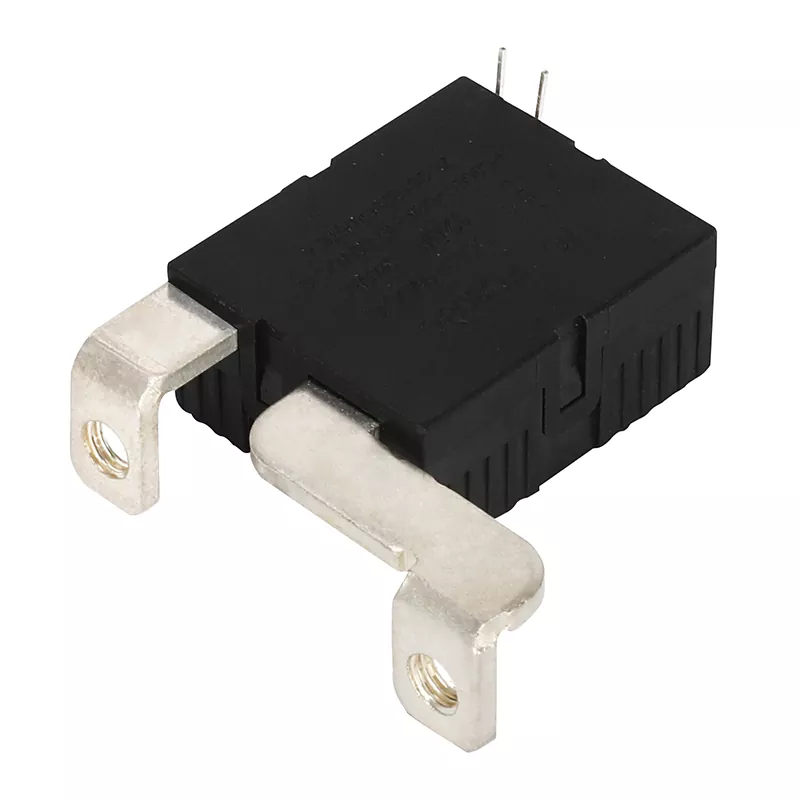

Car Battery Control 120A Latching Relay

Welcome to our factory to buy the latest, low-priced and high-quality latching relays, looking forward to cooperating with you.The car battery control 120A latching relay is a high-performance electrical component specially designed for automotive electrical systems, which can provide reliable power management solutions in high-intensity application environments.

Rated current: 120A

Applicable voltage range: 6-48V DC

Operating temperature range: -40°C to 85°C

Contact form: single-pole double throw (SPDT) or double-pole double throw (DPDT)

Material: high-strength insulating plastic and high-conductivity copper alloy

Weight: Depends on the specific model

Size: Customized service can be provided according to customer needs

This Car Battery Control 120A Latching Relay supports a rated load of 120A and adopts advanced magnetic latching technology to ensure efficient and stable operation under different driving conditions. As a pioneer in the automotive battery switch start magnetic latching relay, the company provides customers with the best products and services with many years of industry experience.

This 120A latching relay is an ideal choice for automotive battery power management. It uses advanced design to effectively reduce power consumption while maintaining power control, making it particularly suitable for applications with high-power load devices. Whether it is a competitive occasion or daily driving, it can provide stable power support, and its external design allows easy integration into various electrical systems.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY
(CONTACT VOLTAGE DROP 10A) Max.10mV
(CONTACT RATING) 120A  250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 120A
(MAX.SWITCHING POWER) 30000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 30ms Max
(RELEASE TIME) 30ms Max
DIELECTRIC STRENGTH(50/60HZ,1Min)
CONTACT &COIL 6000VAC
CONTACT&CONTACT 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 50g

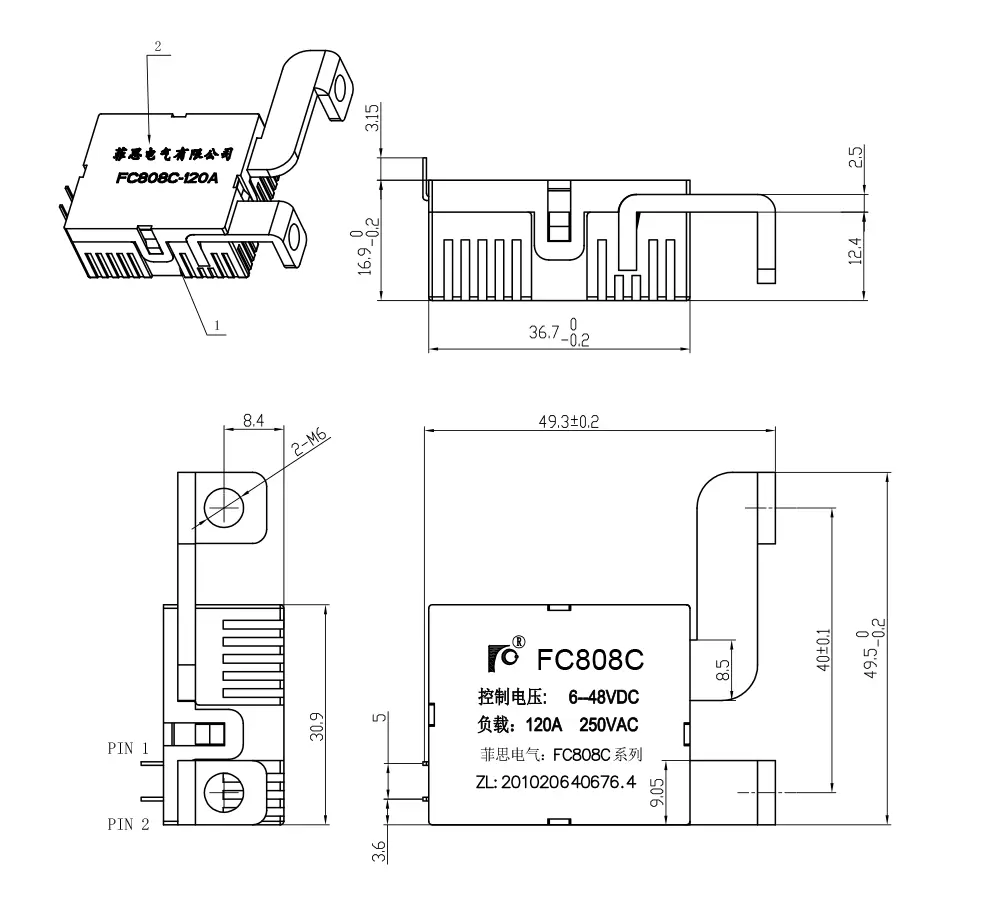

(OVERALL DIMENSION) (in drawing)
