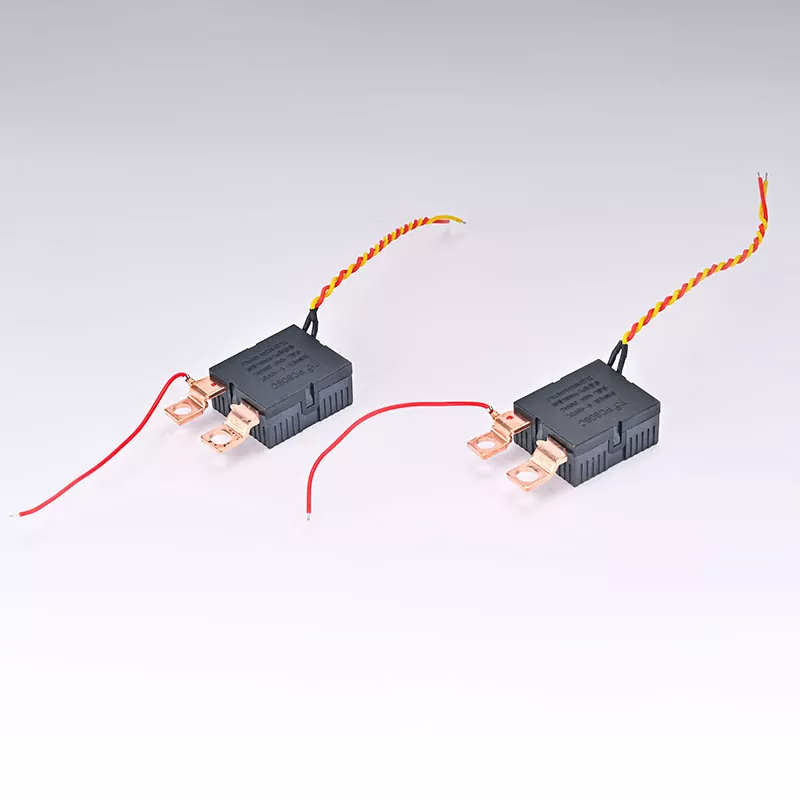

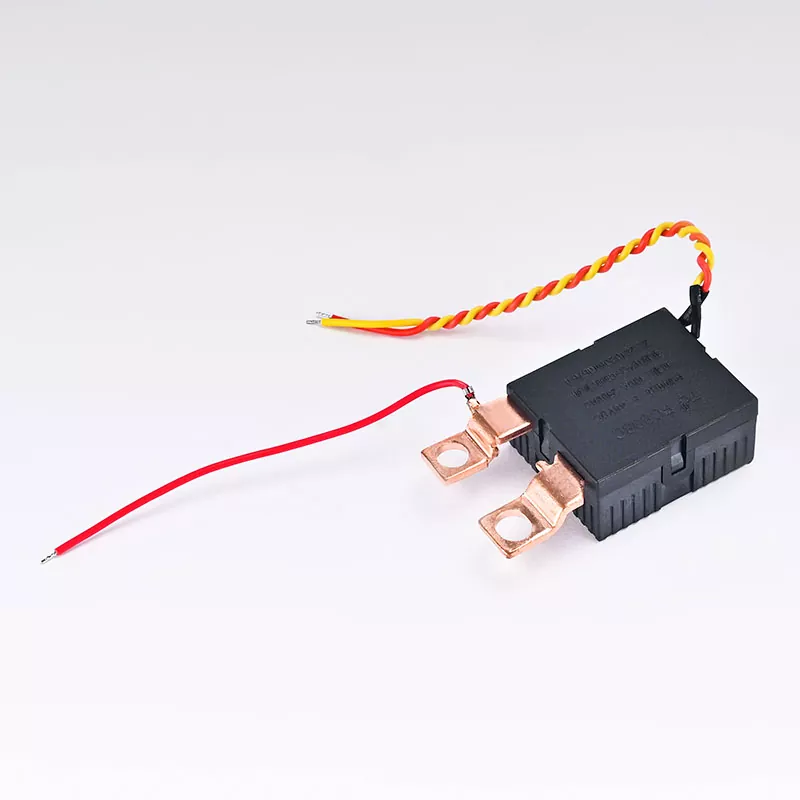

Car Battery Control 100A Latching Relay

As a professional manufacturer, we are willing to provide you with Car Battery Control 100A Latching Relay as advanced electrical components designed for various types of cars and heavy vehicles.

Rated Current: 100A

Drive Voltage Range: 6-48V DC

Operating Temperature: -40°C to 85°C

Material: high-quality high-strength insulating plastic and well-adapted copper copper sheet and silver alloy contacts

Dimensions: can be customized as required, provide detailed dimension drawings

With a rated current of 100A and a wide range of driving voltages from 6 to 48V, it can efficiently manage battery power and achieve stable control and optimization of the electrical system. This Car Battery Control 100A Latching Relay not only improves the utilization rate of electric energy, but also reduces battery power consumption through magnetic latching technology. It is an important part of the electrical system of modern vehicles.


This 100A magnetic latching relay is ideal for battery power management and can provide stable power support for various electrical equipment. Its innovative design allows the relay to maintain the last operating state after power failure, greatly improving the working efficiency of the equipment. As a key component of high-load electrical control, this relay is particularly suitable for extreme driving environments with frequent start-stop, ensuring that the vehicle always maintains efficient operation under various conditions.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 100A  250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 100A
(MAX.SWITCHING POWER) 25000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 40g

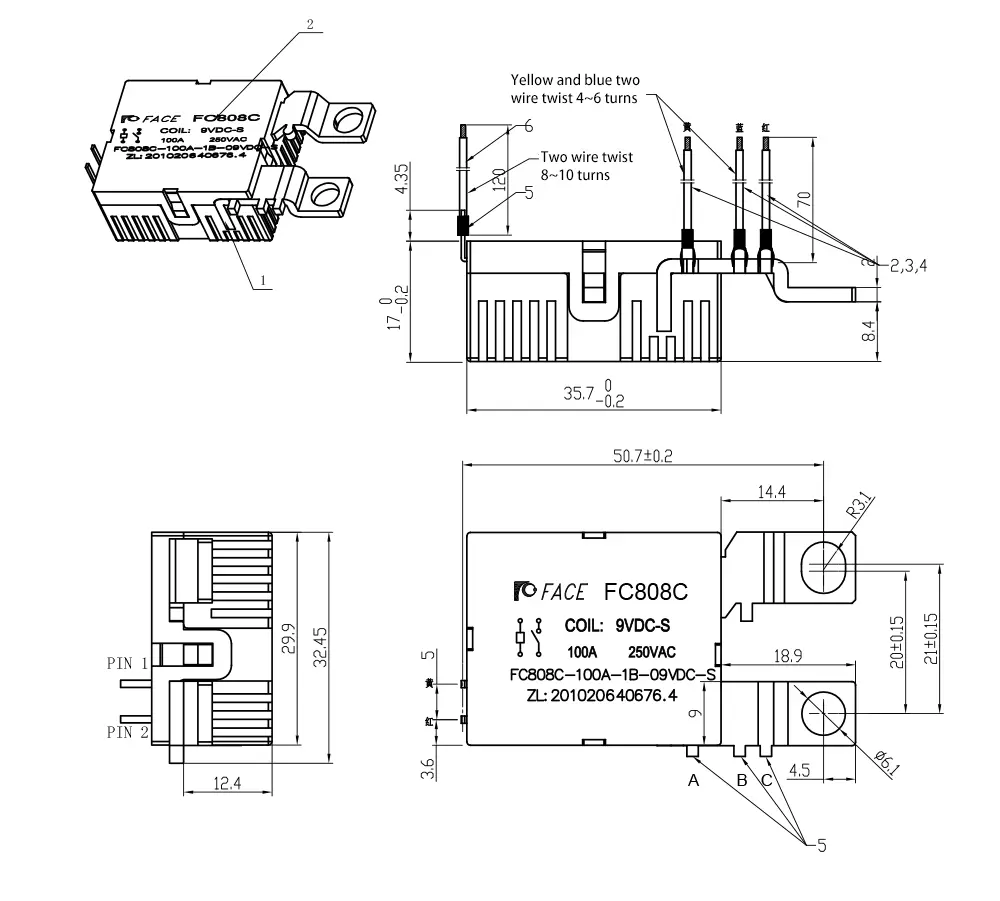

(OVERALL DIMENSION) (in drawing)
