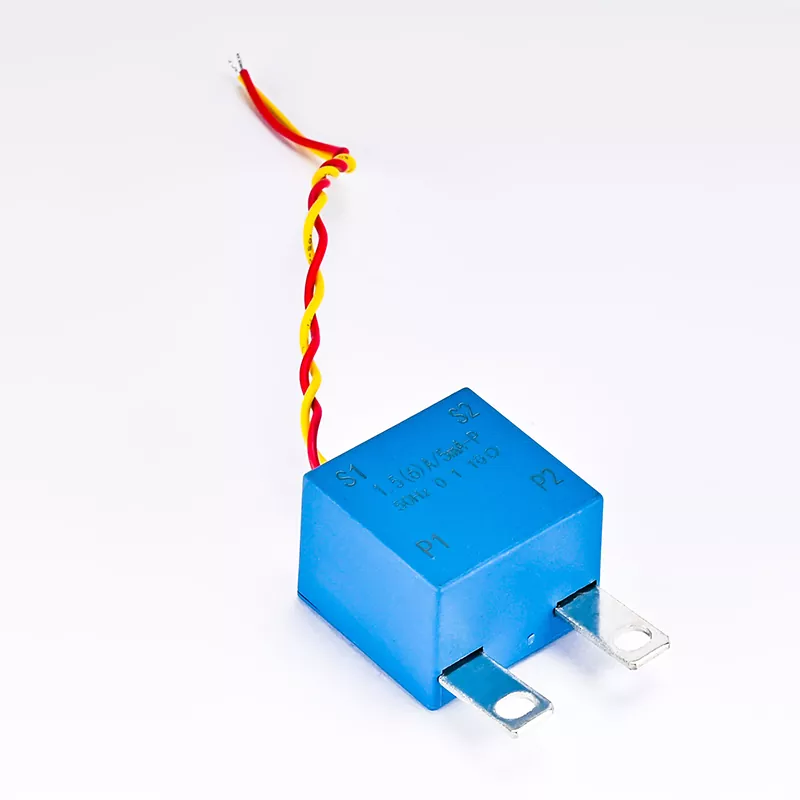

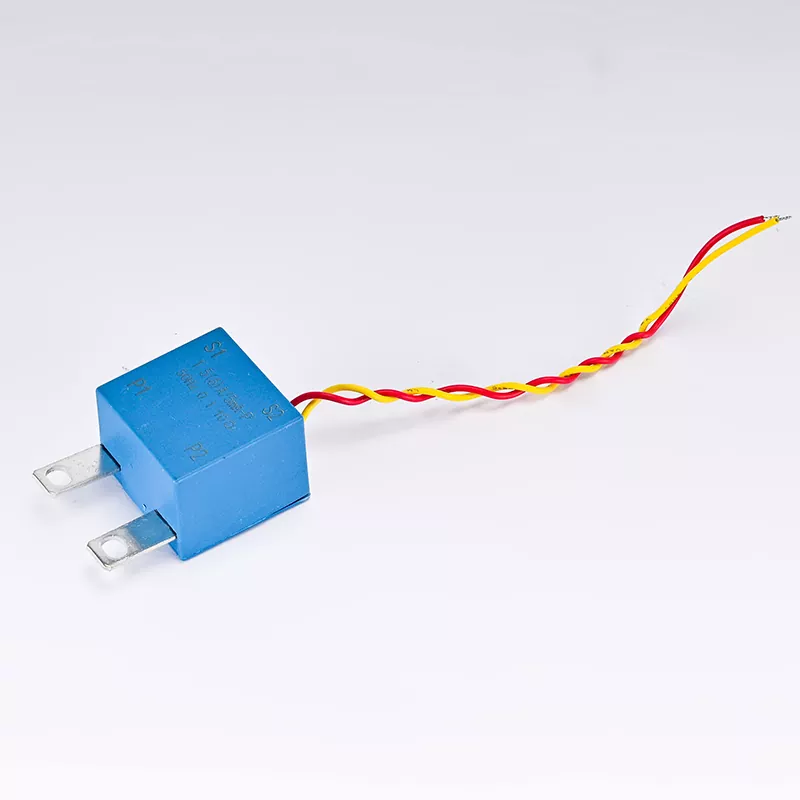

AC Current Transformers

The 2000:1 AC Current Transformers are designed for use with our relays, providing a one-stop solution to meet customers' power measurement and protection needs. Its compact and sophisticated design, coupled with high-precision current conversion capabilities, ensures effective operation in various electrical environments.

Transformation ratio: 2000:1

Rated current: Wide range of adaptability, customized options available according to customer needs

Accuracy level: Better than 0.5 level

Insulation level: Meets IEC standard requirements

Operating temperature: 20°C to +70°C

Size: Compact, specific size available according to model

This 2000:1 current transformer is not only designed for power measurement, but also specially considered for use with our relays. AC Current Transformers have efficient current conversion capabilities, which facilitates the monitoring and protection of power systems. At the same time, the compact appearance design makes installation more flexible, and is widely used in industrial, commercial and smart building fields.

(Coil date) (20℃)

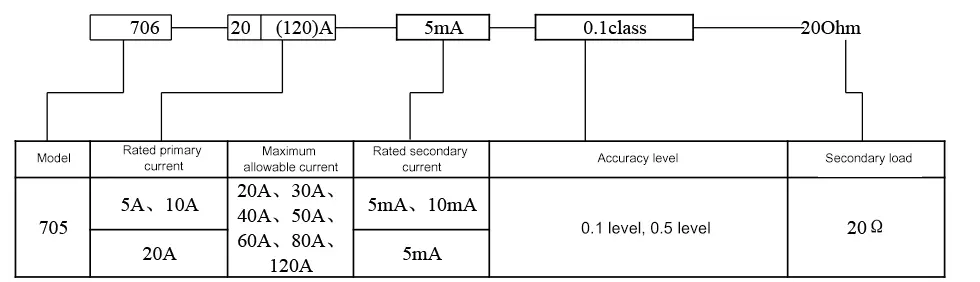

Model Specifications Rated primary
current
(A)
Rated secondary
current
(mA)
Turns ratio
706  5(20)A 1:1000
706  5(30)A
706  5(40)A
706  10(40)A 10  10
706  10(50)A
706  10(60)A
706  10(80)A
706  10(100)A
706  20(80)A 20  10  1:2000
706  20(120)A

(CHARACTERISTICS )

(DIELECTRIC STRENGTH) ≥3000VAC/1min、1mA
(INSULATION RESISTANCE,) ≥5MQ(500VDC)
(SHOCK) ≥98m/s²
(VIBRATION) 10~55 Hz 1mm
(Temperature range) -25~40℃
(WEIGHT) ≤47g

Prec
isio
n
0.1  (Linearity) ≤0.1%
(Phase difference) ≤8分
0.5  (Linearity) ≤0.5%
(Phase difference) ≤30分
