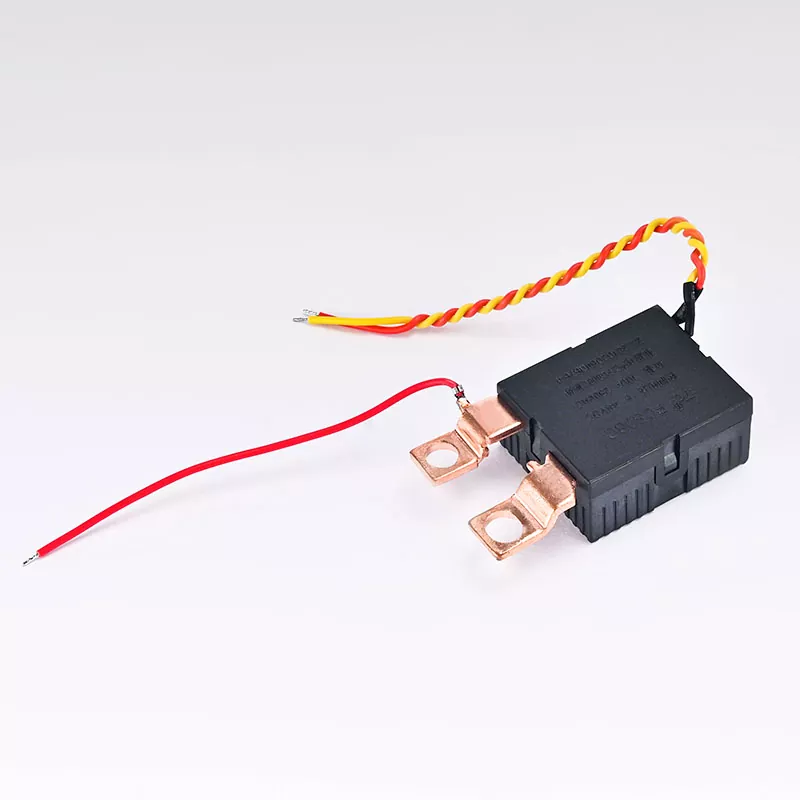

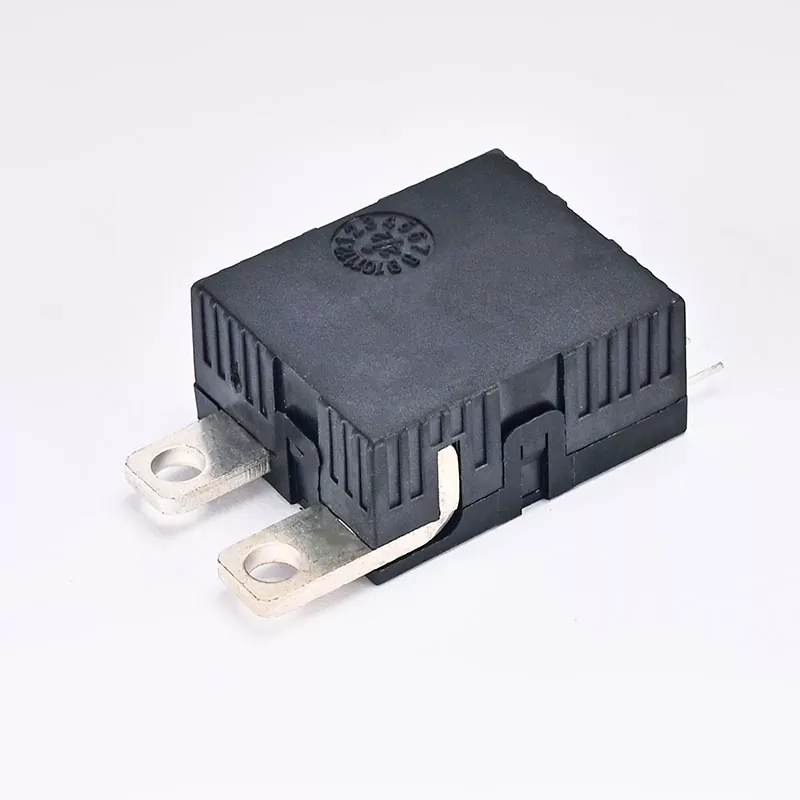

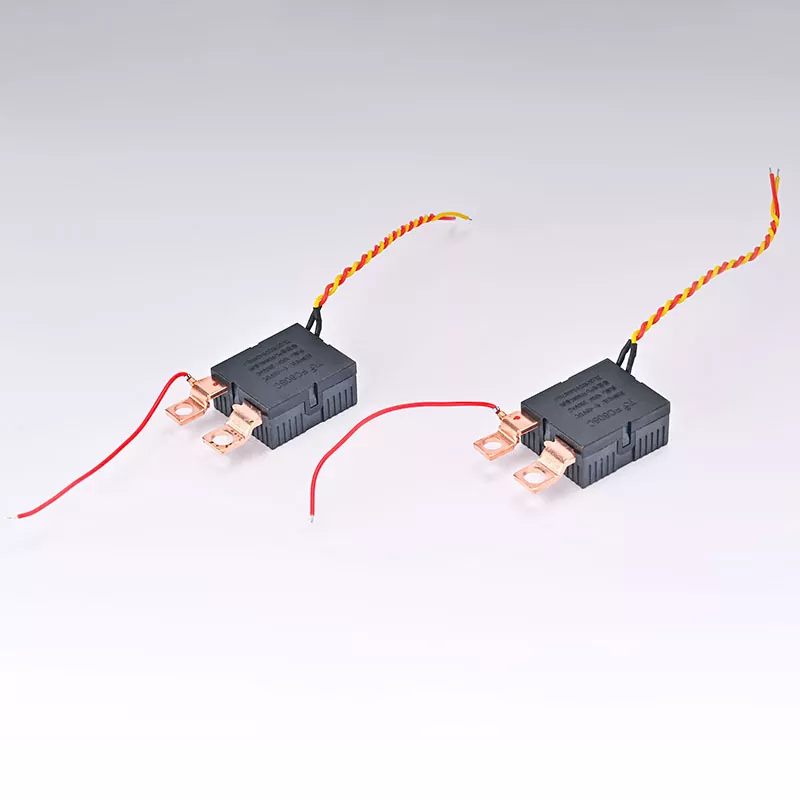

Charging Pile Control 80A 100A 120A Latching Relay

Our Charging Pile Control 80A 100A 120A Latching Relay is a high-performance switch component designed for high-frequency and high-load requirements in the electric vehicle charging environment. It has multiple current specifications such as 80A, 100A, 120A, and a wide voltage range (6-48V) to meet the needs of different charging stations. With an electrical life of more than 15,000 times, it ensures a safe and reliable charging solution for customers.

Current Specifications: 80A / 100A / 120A

Voltage Range: 6V - 48V

Electrical Life: 15,000 Times

Operating Temperature: -40° to 85° Celsius

Material: High-quality copper and high-strength insulator

Mounting Method: Rail Mounting or Screw Fixing

Our latching relay is designed to meet the requirements of current switching response speed under fast charging mode. Combined with efficient circuit design and high-quality materials, its opening and closing response speed is fast and stable. This Charging Pile Control 80A 100A 120A Latching Relay not only guarantees durability under high-frequency use, but also minimizes power loss during current transmission. At the same time, the function upgrade is also carried out for the charging pile environment to ensure efficient and stable current switching under various working conditions, in line with the market's increasing requirements for electric vehicle charging infrastructure.

FC808-80A

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 80A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 80A
(MAX.SWITCHING POWER) 20000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 38g

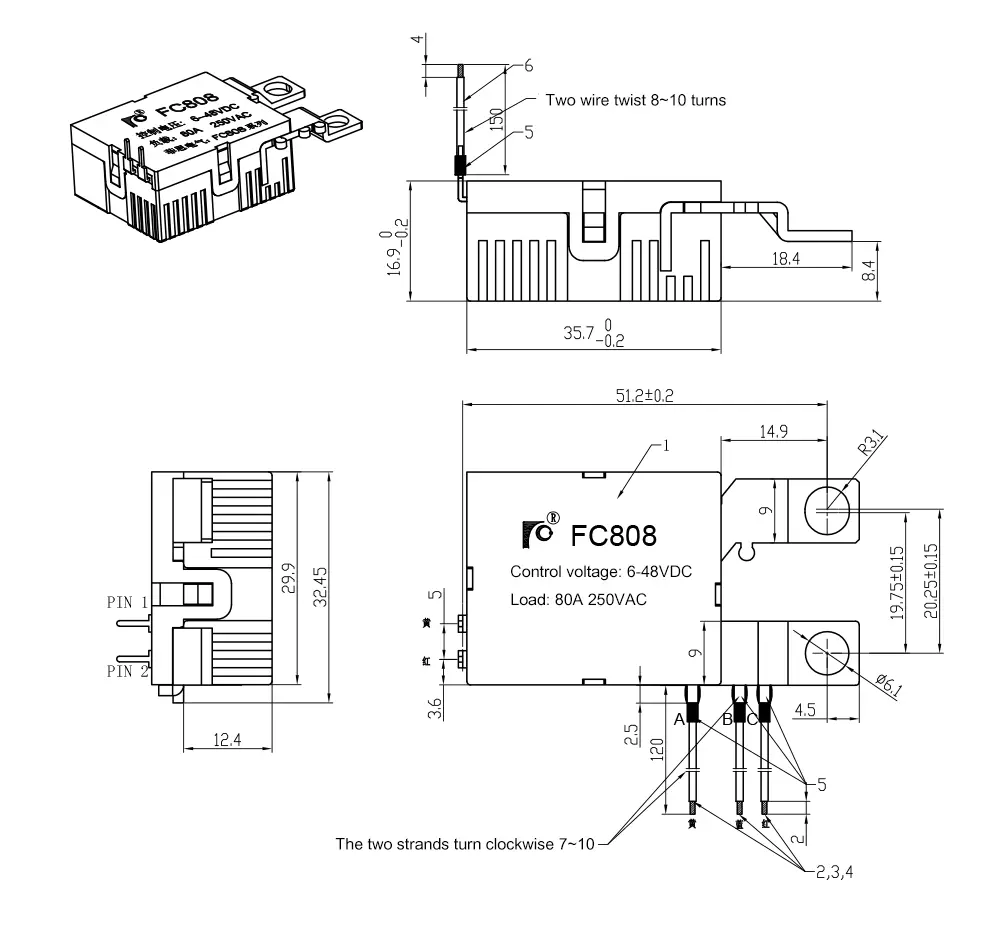

(OVERALL DIMENSION) (in drawing)

FC808C-100A

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
(Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
 Single  DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.15mV
(CONTACT RATING) 100A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 100A
(MAX.SWITCHING POWER) 25000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 20ms Max
(RELEASE TIME) 20ms Max
(DIELECTRIC STRENGTH)(50/60HZ,1Min)
(CONTACT&COIL) 6000VAC
(CONTACT&CONTACT) 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 40g
(OVERALL DIMENSION) (in drawing)

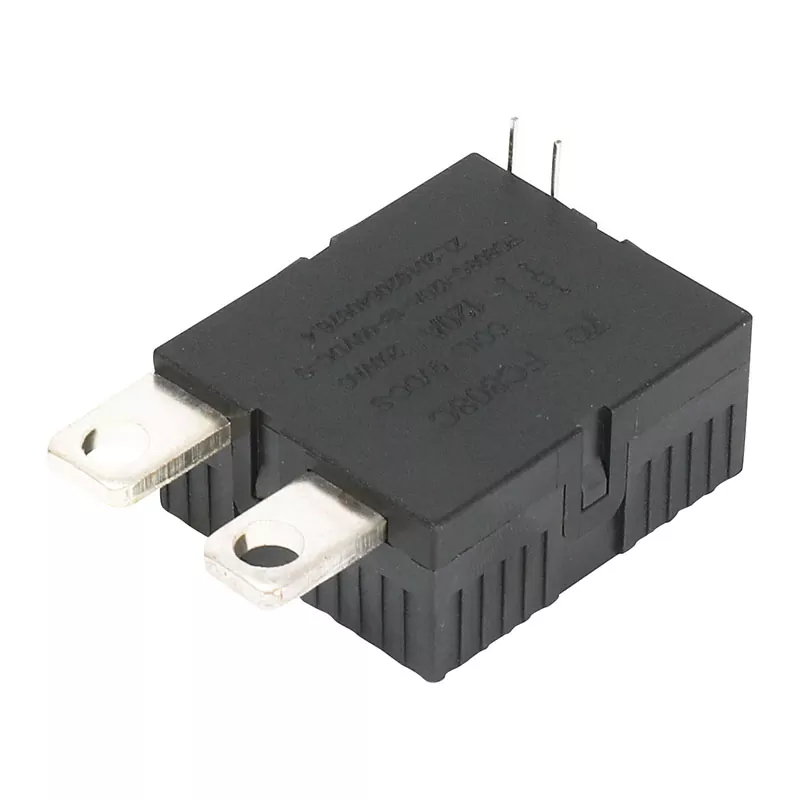

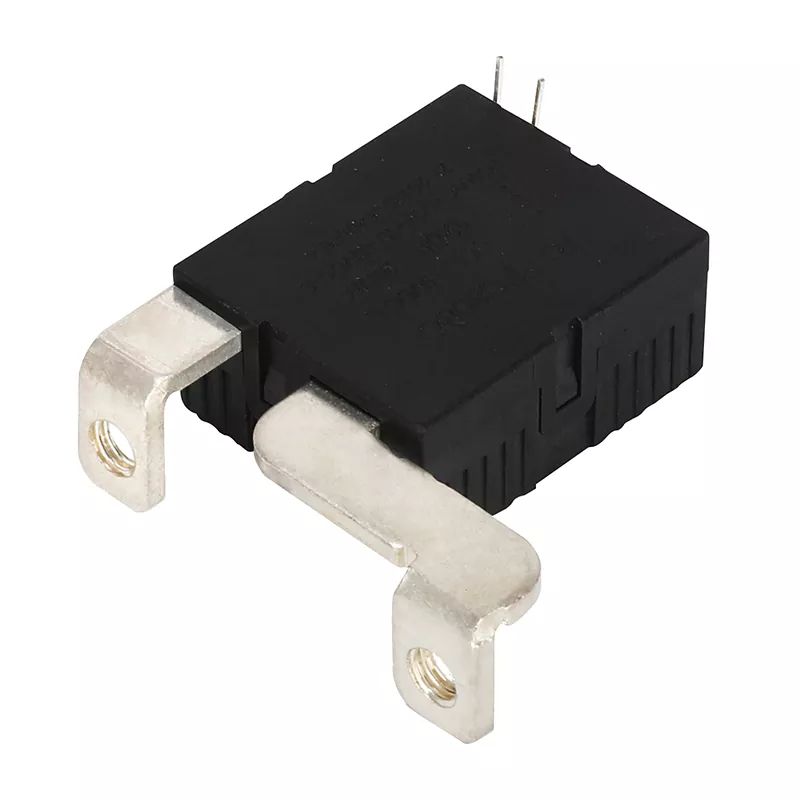

FC808C-120A

VOLTAGE
(VDC)
COIL  RESISTANCE
      (Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single  DOUBLE Single DOUBLE
81.0  40.5/40.5 1.00  2.00  ≤6.3 ≤6.3 48
12  144.0  72/72 ≤8.4 ≤8.4 60
24  576.0  288/288 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY
(CONTACT VOLTAGE DROP 10A) Max.10mV
(CONTACT RATING) 120A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 120A
(MAX.SWITCHING POWER) 30000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 30ms Max
(RELEASE TIME) 30ms Max
DIELECTRIC STRENGTH(50/60HZ,1Min)
CONTACT &COIL 6000VAC
CONTACT&CONTACT 1500VAC
(POLE&POLE)
(INSULATION
RESISTANCE,500VDC)
1000MΩ Min.
(WEIGHT) 50g

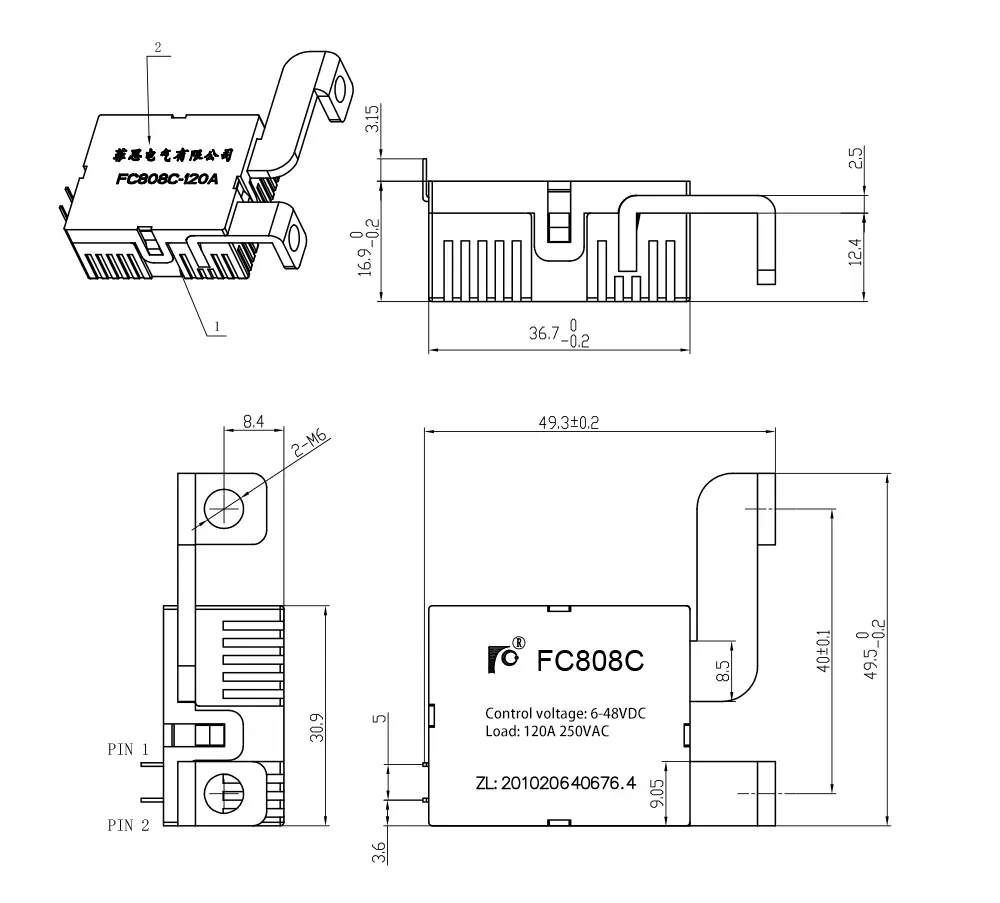

(OVERALL DIMENSION) (in drawing)
