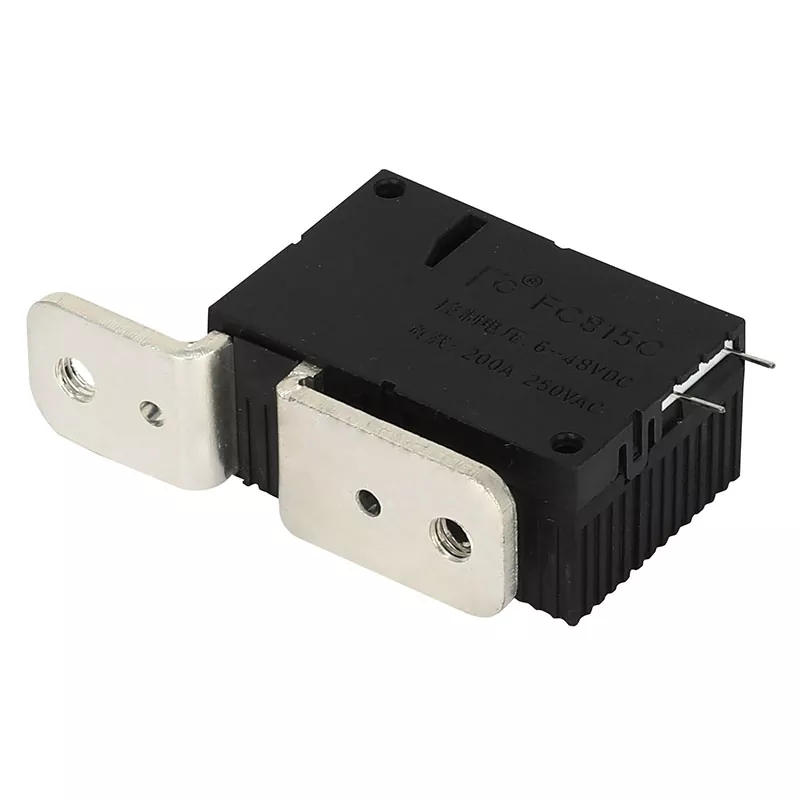

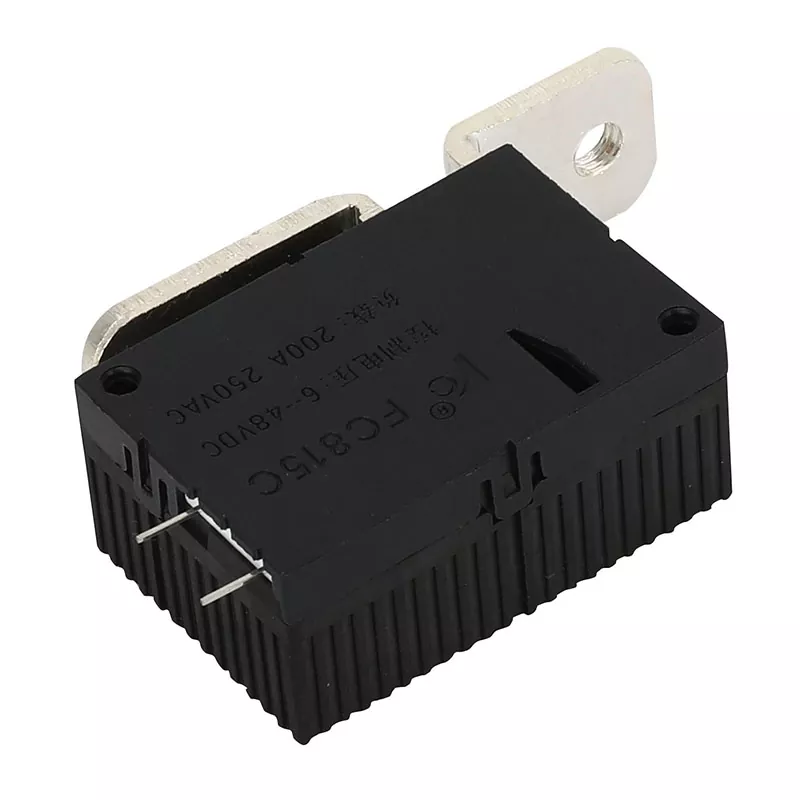

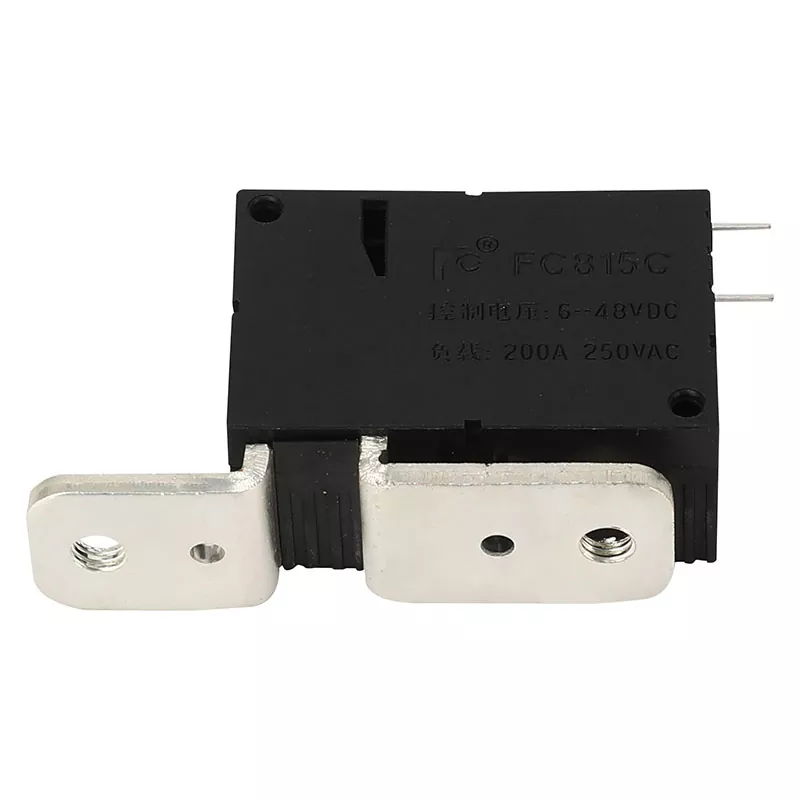

Charging Pile Control 200A Latching Relay

The Charging Pile Control 200A Latching Relay is a high-performance electric switch designed for high current scenarios, which can effectively ensure the safe and reliable operation of the charging pile. The voltage support range is 6V to 48V, and it has a dual contact form, which further enhances the current anti-interference ability in high current applications, and is an ideal choice for solving the problem of excessive current.

Rated current: 200A

Voltage range: 6V-48V

Contact form: double contact

Operating temperature: -40°C to +85°C

Structure type: magnetic holding relay

Dimensions: According to the specific model (detailed data can be provided)

Weight: Lightweight design, easy to install

This Charging Pile Control 200A Latching Relay is designed to provide a safe and reliable switch control solution for electric vehicle charging. By adopting double contact and magnetic holding technology, the relay can maintain excellent performance even under high current conditions, ensuring safety and stability during charging. After strict quality inspection and testing, it is ensured that each product meets industry standards, providing strong guarantees for users.

(COIL SPECIFICATION)20℃

VOLTAGE
(VDC)
COIL  RESISTANCE
      (Q)±10%
COIL Power(W) OPERATING
VOLTAGE(VDC)
RELEASING
VOLTAGE
(VDC)
ALLOWING VOLTAGE
(VDC)
Single DOUBLE Single DOUBLE
牛  9 28.9  14.5/14.5 2.80  5.60  ≤6.3 ≤6.3 48
12  51.4  25.7/25.7 ≤8.4 ≤8.4 60
24  205.7  102/102 ≤16.8 ≤16.8 120

(CONTACT SPECIFICATION)

(CONTACT FORM) 1B
(CONTACT MATERIAL) (SILVER ALLOY)
(CONTACT VOLTAGE DROP 10A) Max.1mV
(CONTACT RATING) 200A   250VAC
(MAX.SWITCHING VOLTAGE) 250VAC
(MAX.SWITCHING CURRENT) 200A  250VAC
(MAX.SWITCHING POWER) 50000VA
(SERVICE LIFE) (MECHANICAL) 5×10⁵OPS
(ELECTRICAL) 1×10⁴OPS

(CHARACTERISTICS )

(OPERATE TIME) 30ms Max
(RELEASE TIME) 30ms Max
DIELECTRIC STRENGTH(50/60HZ,1Min)
CONTACT&COIL 6000VAC
CONTACT&CONTACT 1500VAC
(POLE&POLE)
(INSULATION RESISTANCE,500VDC) 1000MQ Min.
(WEIGHT) 100g

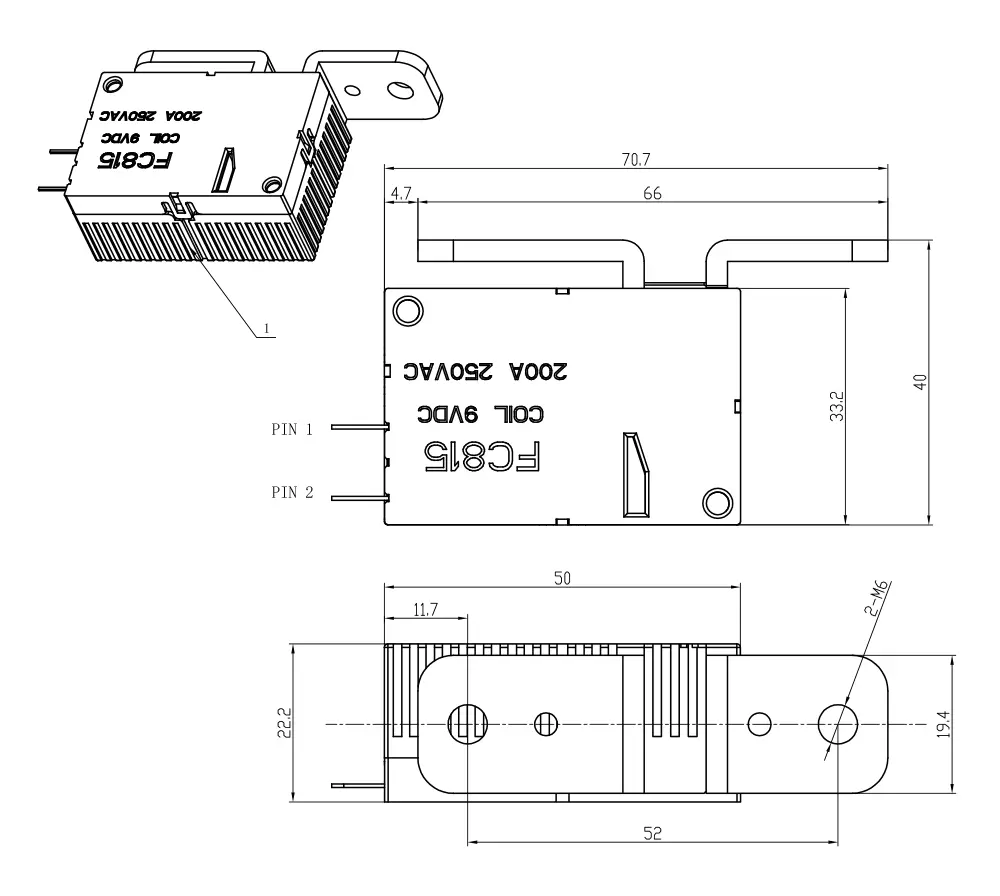

(OVERALL DIMENSION) (in drawing)
